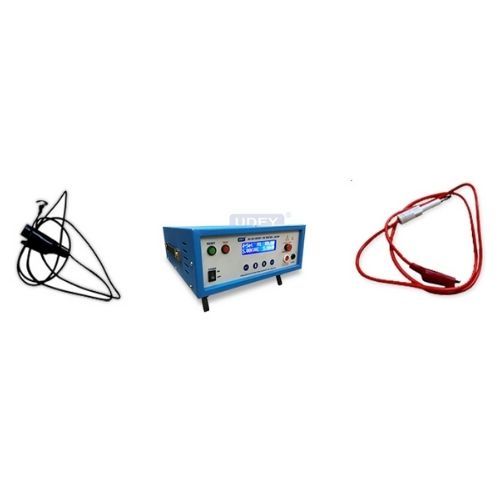

5 kV AC, 6 kV DC Hipot + IR Tester DC Hipot Testers DPC series Udey Test Kits
UDEY TESTER-US-56I is microprocessor controlled AC/DC Hipot with Insulation Resistance Tester. US-561 is designed to perform high voltage withstand and insulation resistance tests on various types of electrical products, systems and components.
Machine Feature
- AC/DC withstand tests and Insulation resistance tests.
- IR test mode: IR can be performed independently or in sequence with Dielectric Withstand test.
- User selectable output voltage frequency of 50 Hz or 60 Hz.
- Setup of trip current and output voltage without the high voltage activated.
- Store and Recall test set-up memories.
- All parameters are set up through simple menu driven program on screen.
- Line load regulation from no load to full load.
- Front Keys can be locked providing limited user access so that only authorized personnel with unlock code can modify test parameters.
- Backlit LCD display allows monitoring of 100uA AC and 20uA DC: Useful when test requirements only allow a very low level of acceptable leakage current.
- Advance A/D conversion, Uses Digital frequency synthesis technology to achieve perfect AC test power with crest factor of 1.35-1.45
- Electronic settings: Test Voltage, High / Low limits of current, Ramp up time, Dwell time.
- Backlit LCM display
- Indicators: Flashing HV ON, PASS and FAIL indicators.
- Audio alarm at FAIL.
- Maximum output current is 12mA AC and 6mA DC.
- Remote output for control to configure tester through simple PLC relay control.
- Rugged table top cabinet
Machine Technical Specification
| Supply Voltage | 115/230 Volts ± 10%AC, 47-63 Hz single Phase. |
| AC WITH STAND TEST | |
| Output Test Voltage | Nominal : 0-5kV/12mA AC |
| Output Frequency | 50 Hz / 60 Hz |
| Output Waveform | Sine wave THD : <2% [Crest Factor > 1.3<1.5] |
| TRIP : Upper Limit | 0.10 to 12.00mA; Resolution: 0.01mA per step |
| DC WITH STAND TEST | |
| Output Test Voltage | Nominal: 0-6kV/5mA DC |
| Output Ripple:mV p-p | <5% at 6kV/5mA Under Resistive Load |
| TRIP : Upper Limit | 0.02 to 5.00mA; [0=OFF]. Resolution: 0.01mA per step |
| TRIP : Lower Limit | 0.00 to 5.00mA; [0=OFF]. Resolution: 0.01mA per step |
| Voltage Setting AC/DC | AC : 0.00 to 5.00kV DC : 0.00 to 6.00kV |
| Voltage Regulation | ± 1% + 5 volts [No load to full load]. |
| Ramp Time [ Rise Time] DWELL TIME [Test time] | 0.1 to 999.9 seconds, 0.1 second per step |
| METERING : 4 digits Voltmeter AC/DC | AC: 0.00 to 5.00kV; DC: 0.00-6.00kV |
| Ammeter AC/DC Timer | AC: 0.10 to 12.00mA; DC: 0.02-5.00mA |
| INSULATION RESISTANCE TEST Test Voltage : Settable | 0.01 to 1.00kV DC; Resolution: 0.1kV per step |
| Test Voltage : Display | 0.00 to 1.00kV DC; Resolution: 0.01kV per step |
| Resistance : Display | 1 to 1000 Meg ohm |
| Test Time Resistance : Upper Limit | 0.5 to 999.9 seconds, 0.1 s per step |
| Remote Control + Signal | 9 pin D socket provides the following signals: |
| Program Memory | 5 memories, 4 test modes selectable [W, I, W-I, I-W] |
| Keyboard Lock | Key Lock to avoid unauthorized access of use. |
| Display | LCD, dot matrix, back lit |
| Construction Power Cord | Sheet Steel Table Top Cabinet, Powder Coated with tilt-up front Feet. |
| Use Environment | Temperature : 0-40 deg C; R.H. = Maximum 80% |
| Dimensions | W x D x H : 28 x 39 x 9 cm approximately. |
Standard Accessories
b) HV and RETURN Test Leads -1 Set
c) D Connector with cable- 1 Number
