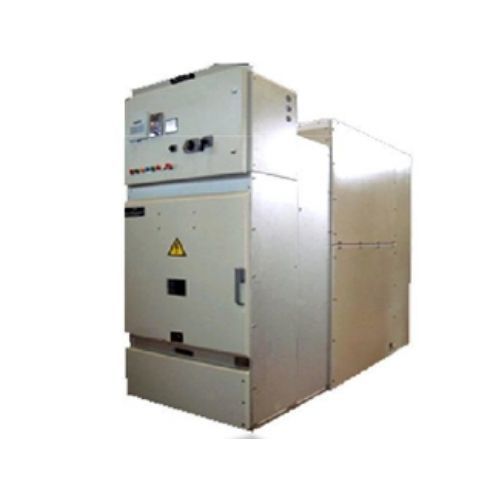

ABB 11 kv to 33 kv AIS panels Breaker AIS ABB MV Products

Key Features:

Indoor Panels / Outdoor Kiosks

• Panels are designed in accordance with ABBs guidelines and as per IEC / IS Standards.
• Compact and Robust
• Cassette mounted CB of ABB make with draw out feature with cubicle front door closed
• Complies to latest standards of IEC 62271-200
• Modular structure with metal clad design with inter panel metal segregation
• Lockable Automatic Safety Shutters for Breaker Compartment Mechanical indication of test and service positions
• Long mechanical life with sturdy and proven operating mechanism
• Electrical-pumping
• Fully Compartmentalized construction with IP4X degree of protection externally and IP2X between compartments for Indoor Type
• Bus Riser is provided in bus coupler panel itself for panels rated upto 33KV 2000A, leading to floor space saving.

Emphasis on Operators safety by:

• Foolproof mechanical interlock to prevent rack-in and rack-out of closed breaker
• Independent exhaust vent for all HT compartments
• Multiple guides for safe, sure and enduring self aligning power contacts
• Live parts are covered by automatic shutters when breaker is racked out
• Integral Earthing switch (optional)

MV Air  Insulated Switchgear Range

Medium Voltage family, mirroring all the Construction characteristics of the Standard version

Indoor Type Panels :Available with current ratings upto 4000A and Short Time Ratings of 26.3/40KA. Panel is designed and type tested to meet the requirements of IEC-60298 / IS :3427. Choice of Aluminium and Copper Busbars
