ABB CV2DJ Auxiliary Relay
Product Details:
X
Product Description

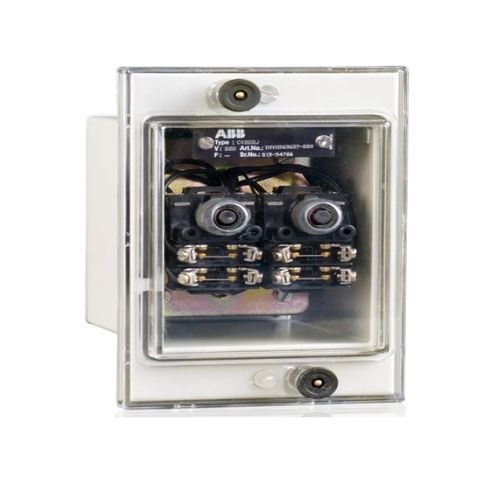

ABB CV2DJ Auxiliary Relay
ABB CV2DJ Auxiliary Relay - Single element auxiliary relay, self-reset contacts with operation indicator
Technical Specification of ABB CV2DJ Auxiliary Relay
- Type: Electro Mechanical Relay.
- Protection Type: Auxiliary Relay.
| Technical Specifications | Details |
| Model No : | CV2DJ |
| Relay type | CV2DJ AUX |
| Auxiliary voltage | 24/30/48/110/220/250 V DC |
| Type of mounting | Flush mounting |
| Contact configurations | 2NO+0NC/ 1NO+1NC |
| Typical applications | Contact multiplication, signaling |
CV2 PRODUCT RANGE:
The indicating relay type CV2 is an instantaneous hinged-armature relay with two contacts. These may be either two normally open contacts, or one normally open and one normally closed. The indicator can be reset simply by pressing the knob back in. Some of the other Aux relay is following CV2A2J, CV2AJ, CV2D2J, and CV2DJ, P8nAHX, P8nCH2J, RXP8n
| TYPE DESIGNATION OF AUXILIARY RELAYS | ||||
| CV2 | Basic auxiliary relay | |||
| A | for AC Voltage | |||
| D | for DC Voltage | |||
| H | with single element without protective cover | |||
| RM | with single element mounted on sheet-metal base | |||
| M | with double element mounted on sheet-metal base | |||
| RN | with single element mounted on plug-in base | |||
| N | with double element mounted on plug-in base | |||
| J | with single element mounted in1/2 S size, flush mounting case | |||
| 2J | with double element mounted in 1/2 S size, flush mounting case | |||
KEY BENEFITS
- Compact and Robust
- Reliable
- Visual Indication
KEY FEATURES
- High contact rating
- Mechanical operation indicator
- 2 or 4 contacts with double interruption
- Wide range of voltage and low power consumption
Explore the comprehensive range of ABB auxiliary relays with us!
