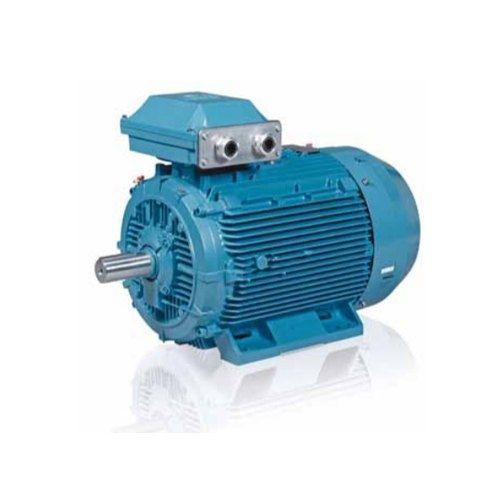

ABB Motor E2BA315SMA6 / M2BAX315SMA6, IE2, 75KW
Product Details:
X
Product Description
ABB Motor E2BA315SMA6 / M2BAX315SMA6, IE2, 75KW, 100 HP, 6 Pole, 1000 RPM, FOOT Mounting, B3, FRAME 315S, 415V, 50HZ, IP55
An Electric Motor Is An Electrical Machine That Converts Electrical Energy Into Mechanical Energy. Electric Motors Operate Through The Interaction Between An Electric Motors Magnetic Field And Winding Currents To Generate Force.
ABB electric motors are synonymous with quality, innovation and the highest efficiency. With an electric ABB motor, you can always achieve the highest efficiency level.
ADDITIONAL INFORMATION:
- Weight 722 kg
- Dimensions 1246— 644— 849 mm
- Kw 75
- Hp 100
- Voltage 415
- Frequency 50 Hz
- AMP 143 amp
- Pole 6 Pole
- Rpm 993
- Frame 315S
- Mounting B3
- Efficiency Class IE2
- Efficiency 93.7
- IP protection IP 55
- enclosure TEFC
- cooling IC 411
- warranty 12 Months (Manufacturer Warranty*)
