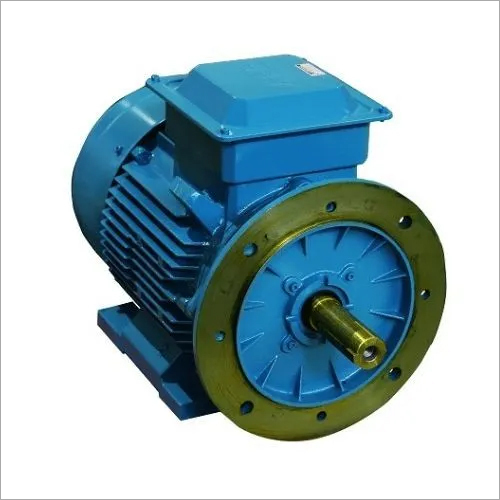

ABB Motor E2HX280SMC4/M2BAX280SMB4, IE2, 90KW
Product Details:
X
Product Description
ABB Motor E2HX280SMC4/M2BAX280SMB4, IE2, 90KW, 120 HP, 4 Pole, 1500 RPM, FOOT CUM FLANGE Mounting, B35, FRAME 280M, 415V, 50HZ, IP55
An Electric Motor Is An Electrical Machine That Converts Electrical Energy Into Mechanical Energy. Electric Motors Operate Through The Interaction Between An Electric Motor’s Magnetic Field And Winding Currents To Generate Force.
ABB electric motors are synonymous with quality, innovation and the highest efficiency. With an electric ABB motor, you can always achieve the highest efficiency level.
ADDITIONAL INFORMATION:
Weight 591 kg
Dimensions 1052 × 571 × 775 mm
Kw 90
Hp 120
Voltage 415
Frequency 50 Hz
AMP 158 amp
Pole 4 Pole
Rpm 1483
Frame 280M
Mounting B35
Efficiency Class IE2
Efficiency 94.2
IP protection IP 55
enclosure TEFC
cooling IC 411
warranty 12 Months (Manufacturer Warranty*)
