Product Description

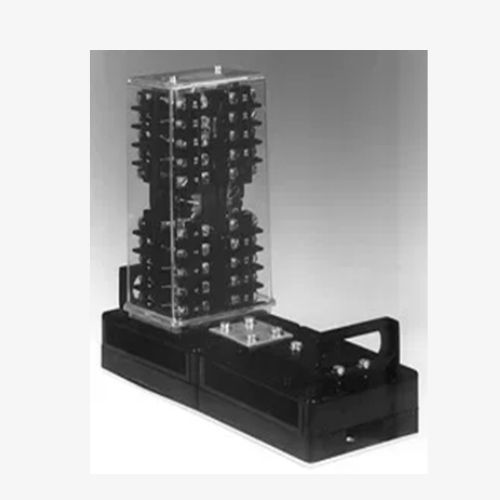

ABB PSU14n-2X Bi-Stable Relay

ABB PSU14n-2X Bi-Stable Relay – Bi-Stable Relay, Electrically Reset Contacts with Operation Indicator.

Technical Specification of ABB PSU14n-2X Bi-Stable Relay

• Type: Electro Mechanical Relay.
• Protection Type: Bi-Stable Relay.

ELECTROMECHANICAL BISTABLE RELAY

The bistable relays are mainly used for remote and automatic controls where there is often a need for contactors which have two stable contact positions, even in the dead state.

The application of alternate control pulses to the coils because the contacts to change from the one state to the other. If the supply is interrupted, the contacts remain in their previous position, even when the voltage is restored. The contacts are arranged symmetrically on both sides of relay coil and armature assembly in two stacks.

BISTABLE RELAY PRODUCT RANGE

• PSU6nXBasic relay with 6 free contacts and without indicator mounted on one set of plug-in base
• PSU14n2XBasic relay with 14 free contacts and with indicator mounted on two sets of plug-in base
• RXPSU6n

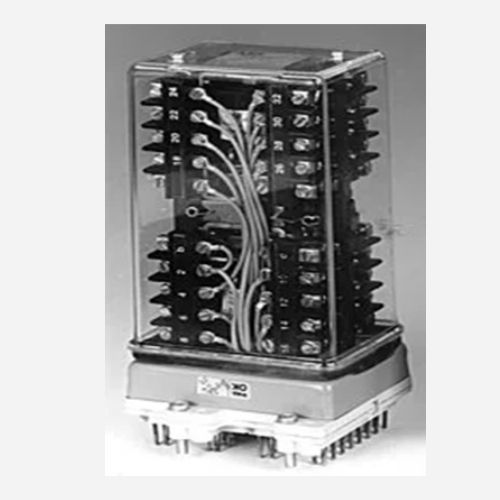

• RXPSU14n

KEY BENEFITS

• Easy installation and maintenance
• Highly reliable
• Visual Indication
•


KEY FEATURES

• Wide range of voltage and contact configuration
• Visible flag strips during operate condition
• Large diameter of terminals for external wiring on plug-in base terminal
•


Electromechanical and solid state relays

For new applications where reliable operation is essential, in harsh environments, or in existing installations where an exact replacement is required

ABB electromechanical relays have protected the power system for more than 100 years, and with the proper inspection, maintenance, and testing techniques, these relays can guard the power system for many more years.

Solid state electronic components provide a similar function to electromechanical relays but do not have any moving components, increasing long-term reliability.

Explore the comprehensive range of ABB auxiliary relays with us!
