Product Description

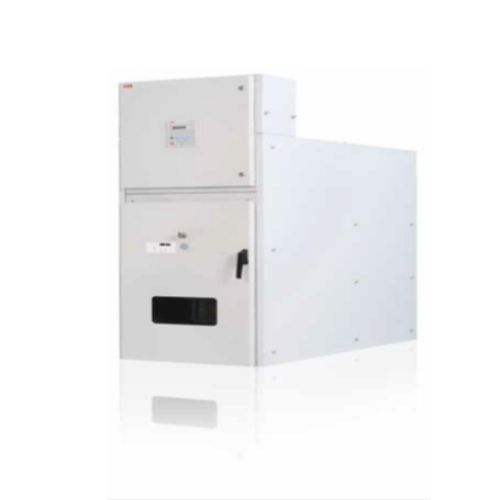

ZN1 an innovative switchgear for power Distribution requirements

ABB ZN1 primary distribution switchgear is designed to meet the specific needs of the Indian market, with key features such as a compact construction, low maintenance design and an internal arc withstand current rating of 26.3 kA for 1 second that is unique in this sector. The ZN1 range provides an access to the quality, reliability, safety, performance and high level of technical support associated with ABB's global brand.

ZN1 Switchgear

ABB's medium voltage switchgear ZN1 contains our know how and expertise on air insulated switchgear, and is designed to meet the specific needs of our customers. ZN1 comes with the very best of design and quality built-in to deliver an ideal solution for a wide variety of power distribution needs.

Key features

• Switchgear conforms to IEC 62271-200
• Designed for classification LSC2B PM
• Designed for fast and easy installation
• Constructed using aluminium zinc coated steel and pre galvanised sheets making it a highly reliable switchgear
• Extensible on both sides
• Encapsulated PTs with built in fuses
• Cable termination height of 600 mm
• Factory assembled integral gas duct
• Simple maintenance
• Compact and space saving solution with reduced footprints
• Fitted with conventional instrument transformers
• Can be offered with ABB's REF601,REJ601 and other numerical relays for intelligent protection solutions

Safety

• Internal arc-proof construction conforming to the classification IAC AFLR up to 26.3kA,1 sec
• Closed door rack-in and rack-out of circuit breaker ensuring full safety to the operating personnel
• Fitted with standard safety interlocks
• Provisions of padlocks on shutter, circuit breaker compartment doors, rack in handle insertion
• VInd Vacuum circuit breaker
• Conforms to IEC 62271-100
• Floor rolling circuit breaker
• Continuous rated closing and tripping coils
• Modular circuit breaker mechanism for fast and easy maintenance
• Integral spring charging handle
• Suitable for E2,M2 & C2 (single capacitor bank) class applications
• In-built mechanical anti-pumping device
