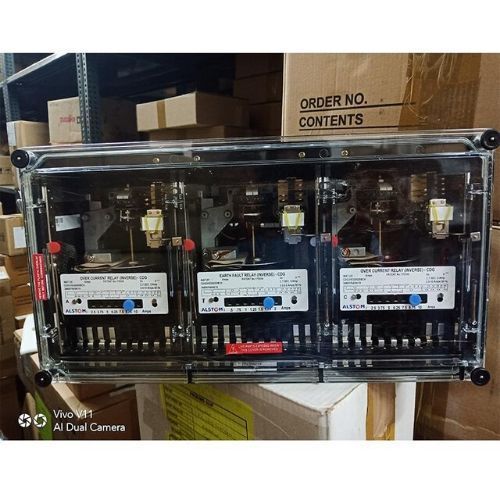

Alstom Over current, E/F Protection CDG31EG002SBCH
Product Details:
X
Product Description
Alstom Over current, E/F Protection CDG31EG002SBCH
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Over current & Earth fault Protection(IDMT Relay)
| GBCDG31EG002SBCH |
|
| NON DIRECTIONAL INV TIME 3O/C OR 2O/C&1E |
|
| MODEL NO | CDG31EG002SBCH |
| RELAY TYPE | CDG 31 |
| APPLICATION | 2 O/C + 1 E/F |
| BURDEN / D.M.T | 3 VA / 3 SEC. |
| C.T. SECONDARY | 5 AMP C.T. |
| CASE SIZE . | 3D HORZ |
| CONTACTS (S/R OR H/R) | 2 N/O S/R |
| E/F SETTING | 0.5 2 Amps. |
| FLAG | YES |
| FREQUENCY | 50 HZ |
| MOUNTING | FLUSH |
| O/C SETTING | 2.5 -10 Amps. |
| NAME PLATE | RFG9126 903 |
| Outline Diagram | MFJ 014 |
| Wiring Diagram | MADZ802.631 |
