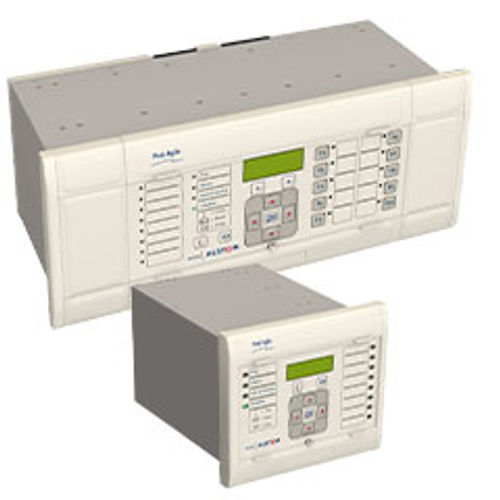

Alstom Transformer Protection Relay Micom P643 (Numerical Relay)
Product Details:
X
Product Description
Technical Specification
- TypeNumerical Relay
- Protection TypeTransformer
- Voltage24V-240V
- AC\DC OperatedAuxillary supply AC/DC
- Transformer Protection Systems MiCOM Agile P64
Description : -
GE's MiCOM Agile platform of transformer protection relays helps preserve transformer service life and provides fast protection for transformer faults. The platform consists of three model variants (P642, P643, and P645) that cover two and three-winding transformers (including auto-transformers), with up to five sets of 3-phase CT inputs, and offers high and low impedance restricted earth fault and has integral asset management capability.
Key features:
High stability during external fault with heavy CT saturation due to transient bias technique
No slow-down of differential elements due to 2nd harmonic component in fault currents
Current transformer supervision operates with or without voltage inputs, fast enough to prevent any spurious tripping and alarm
10 integrated function keys, tri-color LEDs, and graphical programmable logic permit the creation of comprehensive, tailored schemes
Overview
Transformers are high capital assets in electrical power systems. Elimination of all electrical and mechanical stresses, although desirable to preserve transformer life, is impractical. Adaptive techniques to measure, alarm (or trip) and advise on cumulative service can help to schedule preventive maintenance before a costly failure occurs. Internal faults are a risk for all transformers, with short-circuits dissipating the highest localized energy. Unless cleared quickly, the possibility to rewind windings reduces and core damage may become irreparable.
GE's P642, P643 and P645 address all these issues, preserving service life and offering fast protection for transformer faults. A transient bias technique has been included, enhancing relay stability and CT requirements. Hosted on an advanced IED platform, the P64x incorporates differential, REF, thermal, and over fluxing protection, plus backup protection for uncleared external faults. Model variants cover two and three-winding transformers (including auto-transformers), with up to five sets of 3-phase CT inputs.
Key benefits:
Backup and logging of through faults
Simple settings “ wizard requires only nameplate data
Integrated backup overcurrent per winding or CT input - optional directionalizing when relay fitted with a 3-phase VT
Ordering the 3-phase VT permits full monitoring and measurement of power and energy quantities
Main characteristics:
Current loop analog inputs [CLIO] and analog outputs [RTD] for remote monitoring
Optional single or dual redundant Ethernet available for IEC 61850 or DNP3
Transient biasing reduces CT knee point dimensioning by typically 25% compared to historical applications
