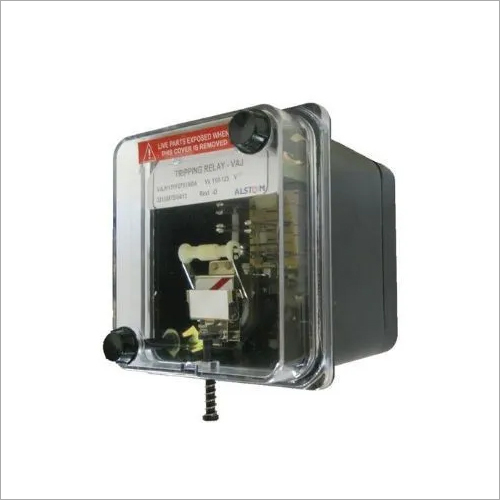

Alstom Tripping relays VAJH13YF1001ABA

Request to Call Back Send Inquiry

Product Description

SINGLE POLE HIGHSPEED TRIPPING RELAY

Technical Specifications

Model No :Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â VAJH13YF1001ABA

VAJH13

AUX. CURRENT OR VOLTAGEÂ Â -Â 220 / 250V DC

BURDENÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -Â LOW

CASE SIZEÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -Â 1/4N V 10T

CONTACTS (S/R OR H/R)Â Â Â Â -Â 3 N/O 1 N/C H/R

FLAGÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -Â YES

MOUNTINGÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â -Â FLUSH

Name PlateÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â RFB9067 003

Outline DiagramÂ Â Â Â Â Â Â Â Â Â Â Â Â MFM015

Wiring DiagramÂ Â Â Â Â Â Â Â Â Â Â Â Â Â 01VAJH13YF 001

Cut Out Dimension(in mm)-(H X W X D)Â Â Â Â Â Â Â 116x145x130
