GBVAJH23ZG0752BBA

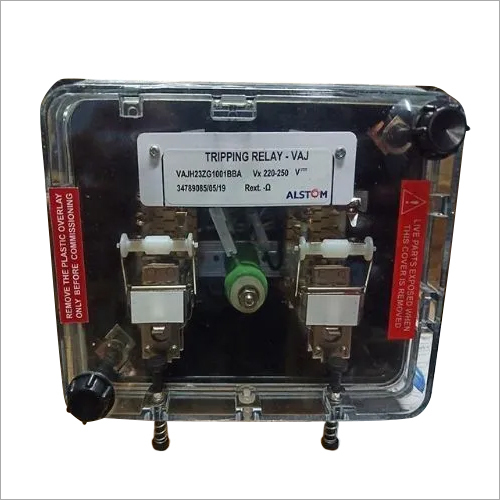

2 ELEMENT VOL. OP HIGH SPEED TRIP RELAY

Technical Specification:

Relay Model No            -  VAJH23ZG0752BBA

Relay type                -  VAJH 23

Case size                 -  1/2N H 20T

Aux.current or voltage    -  110 - 125 V DC

Contacts L.H Unit         -  3 N/O 1 N/C

Contacts R.H Unit         -  3 N/O 1 N/C

Total output contacts     -  6 N/O 2 N/C H/R

Burden                    -  High

Flag                      -  Yes

Note:-Resistor `R1' 1 off and `R2'

1 off to be connected in parrallel

Mounting                  -  Flush

Name Plate                -  RFB9070 004

Outline Diagram           -  RFG0031 SHT.3A

Wiring Diagram            -  01VAJH23ZG 002

Cut Out Dimension(in mm)-(H X W X D)           -   116x145x130
