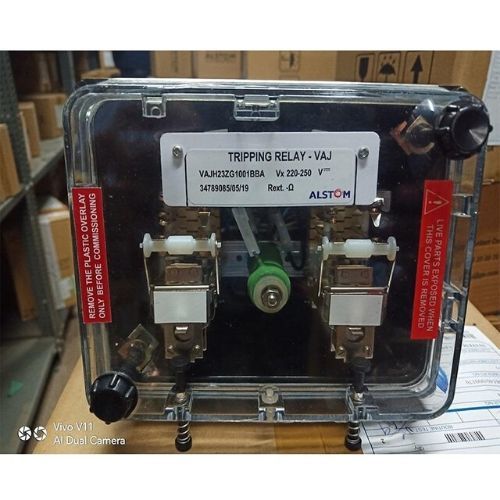

Alstom Tripping relays VAJH23ZG1004BBA
Product Details:
X
Product Description
Technical Specification:
Type: Electro Mechanical Relay
Protection Type: Tripping relays GBVAJH23ZG1004BBA
HAND RESET TRIPPING RELAY
- Relay model no. - VAJH23ZG1004BBA
- Relay type - VAJH23
- Aux. current or voltage - 220 - 250V DC
- Burden - High
- Case size - 1/2N H 20T
- Contacts L.H.Unit - 2 N/O 2 N/C
- Contacts R.H.Unit - 2 N/O 2 N/C
- Total output contacts - 4 N/O 4 N/C H/R
- Flag - Yes
- Mounting - Flush
- Note:-Resistor'R1'1 off and 'R2'
- 1off to be connected in parallel.
- Name plate-1 - RFB9070 004
- Outline drawing - MFM017
- Wiring diagram - 01VAJH23ZG 002
- Cut Out Dimension(in mm)-(H X W X D) - 116x145x130
