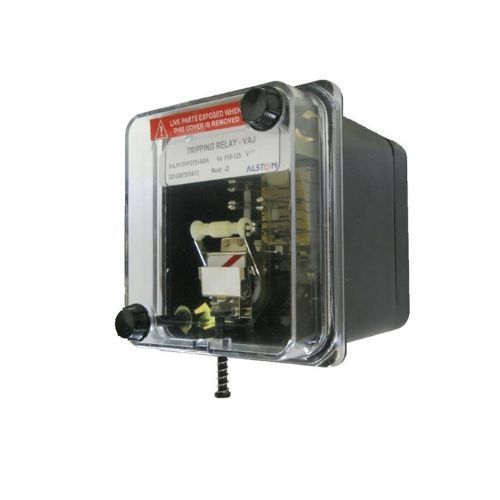

Alstom Tripping relays VAJHM23ZG1004BBA
Product Details:
X
Product Description
Alstom Tripping relays VAJHM23ZG1004BBA
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Tripping relays
GBVAJHM23ZG1004BBA
2 POLE HISPEED TRIP RELAY WITH COIL SUPE
| Relay Model No | GBVAJHM23ZG1004BBA |
| Relay Type | VAJH23 |
| Case Size | 1/2NH 20T |
| Aux Current OR Voltage | 220 - 250V dc |
| Contacts L.H Unit | 2N/02 N/CH/R |
| Contacts R.H Unit | 2N/02 N/CH/R |
| Total Output Contacts | 4N/O2N/C H/R |
| Burden | High |
| Flag | YES |
| Note | Resistor ‘R1’ 1 Off And ‘R2’ |
| 1 off to be connected in parrallel | |
| Mounting | Flush |
| Name Plate | RFB9070004 |
| Outline Diagram | RFG0031 SHT3A |
| Wiring Diagram | 01VAJH23ZG001 |
| Cut Out Dimension(In mm) –(H X W X D) | 116x145x130 |
