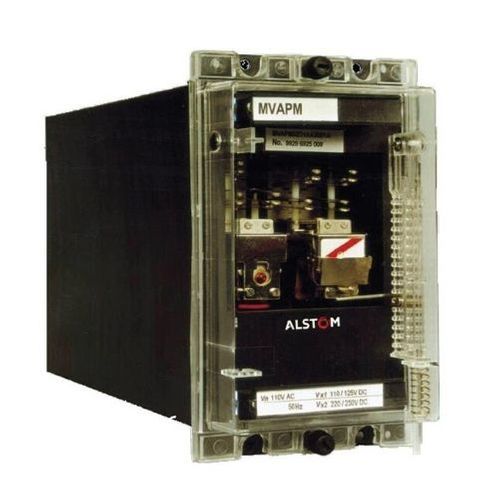

Alstom Voltage Balance Relay MVAPM32D1AA2001A

MVAPM32D1AA2001A

3 PHASE VOLTAGE SUPPLY MONITORING RELAY

Technical Specifications

Relay Model No

MVAPM32D1AA2001A

Relay type

MVAPM 32

Case size

Size 4 - Midos

Nominal voltage

110V ac

Frequency

50 Hz

Aux.voltage - Vx1

110/125V dc

Aux.voltage - Vx2

220/250V dc

Phase

3

Output contacts

4C 2M S/R

Aux.unit Front mtd L.H

RLB - 3C S/R N/F

Aux.unit Front mtd R.H

RLC - 2M 2C S/R W/F

Aux.unit Rear mtd

RLA - 1B S/R N/F

Delay on pick up

RLC - 30 to 40 mSECS

Name Plate

RGJ9104-217

Outline Diagram

RGJ0025 SHT-3

Wiring Diagram

01 MVAPM32 001
