Alstom Voltage Protection Relay VAG11YF8012ADCH
Product Details:
X
Product Description

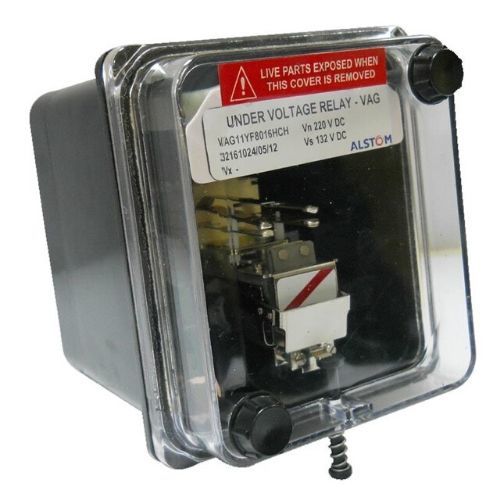

Alstom Voltage Protection Relay VAG11YF8012ADCH
Technical Specification, 1.Type: Electro Mechanical Relay, 2. Protection Type:Voltage Protection relay(Under/Over Voltage)GBVAG11YF8012ADCH
INSTANTANEOUS NO VOLTAGE RELAY
Technical Specifications
- Model No : VAG11YF8012AD(M)
- VAG11(N/V)
- CASE SIZE - 1/4N V 10T
- CONTACTS (S/R OR H/R) - 1 N/O 1 N/C S/R
- FLAG - REVERSE FOR NO VOLT.
- FREQUENCY - 50 HZ
- MOUNTING - FLUSH
- NO-VOLT SETTING - 25 - 60%
- VOLTAGE/CURRENT NOMINAL - 240V AC
- External Resistor
- Name Plate RFB9067-602
- Outline Diagram MFM015
- Wiring Diagram MADZ 075-7
