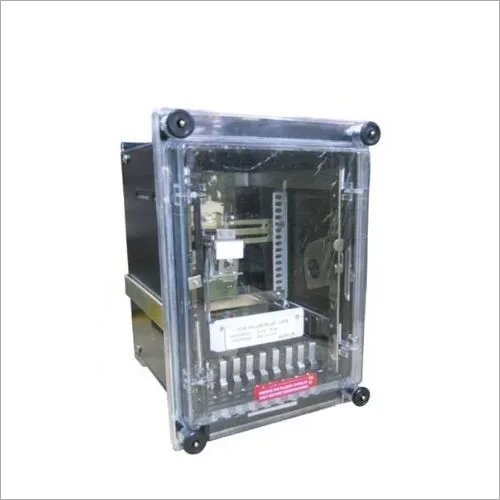

Alstom Voltage Protection relay VAGM22AF71C
Product Details:
X
Product Description
Technical Specification 1. Type: Electro Mechanical Relay 2.Protection Type: Voltage Protection relay(Under/Over Voltage)Technical Specifications
Model No : VAGM22AF71C
Relay type VAGM22
APPLICATION O/V
E/F OR U/V SETTING NOT APPLICABLE
EXTERNAL TRANSFORMER NOT REQUIRED
CASE SIZE 1D V 10T
CONTACTS (S/R OR H/R) 1 N/O 2 N/C S/R
O/C OR O/V SETTING 110 - 140%
FLAG STANDARD FOR O/V
MOUNTING FLUSH
FREQUENCY 50 HZ
Name Plate RZF9134-602
Outline Diagram MFJ012
Wiring Diagram MADZ602.15-2
External Resistor
