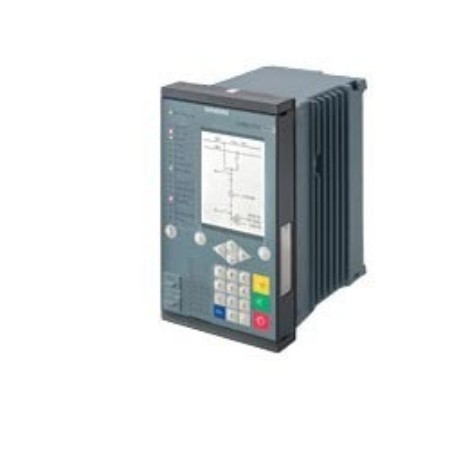

Bay Controller Unit

Product Description

Bay Controller Unit

With the help of skillful team, we present an extensive range of Siprotec Digital Grid. Our products are available in varied configurations that meet on consumers demand.

Features:

• Durable nature
• Top performance
• Accurate dimensions
• Easy to install
• Longer service life
• Low maintenance

The SIPROTEC5 Bay Controller is a universal control and automation device with optional protection function. It is designed for use in all voltage levels from distribution to transmission. As a full member of the SIPROTEC 5 family, it allows the use of a large number of protection functions from the SIPROTEC library with identical parameters like in the protection devices. The flexible hardware concept enables the exact fitting to all amount of process data.

Main function: Bay Controller for medium and high voltage switchgears. Integrated operator panel and key switches (optional). Powerful automation functionality, easily configurable with DIGSI. Large number of protection functions available.

Inputs and outputs: 5 predefined standard variants with 4/4 current/voltage transformers,11 to 75 binary inputs,9 to 41 binary outputs

Hardware flexibility: Flexible adjustable HW IO-quantity within the scope of the SIPROTEC5 modular system. The use of a second row allows more than 400 in- and outputs.

Width of housing: 1/3 x 19 Inch - 2/1 x 19 Inch
