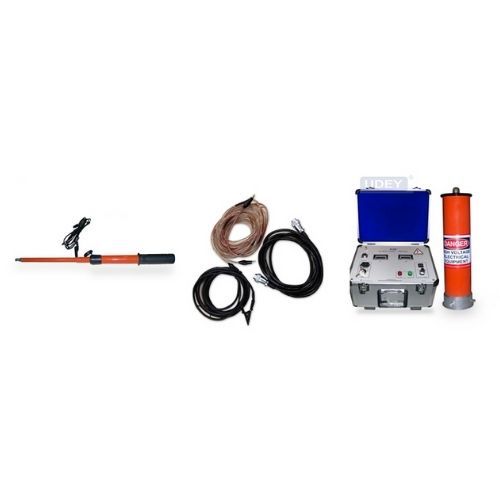

DC Hipot Testers DPC series Udey Test Kits
Model : DPC-60-5 DPC-80-5 DPC-120-5
DPC series hipots are used for proof testing of high voltage equipment in power engineering. Routine testing of the insulation and leakage is a necessary requirement for electrical equipments. Other areas include: Cable breakdown testing, capacitor charging and general laboratory use.
Machine Feature
Portable: 60kV-5mA; only 10kg. Over voltage protection setting. Digital readout of test voltage & leakage current. Optional Extra mA meter to measure leakage in HT. Aluminum alloy cabinet with cover with handle.
Easy to carry as small dimension and low weight.
Machine Technical Specification
| Supply Power | 230V AC + /- 10%, 50 Hz. | |||
| Output Voltage | As per model | |||
| Output Current | As per model | |||
| Ripple Factor | < 3% | |||
| Trim mA | 1 to 1.1 times rated current | |||
| Rating | Intermittent [15 min ON/OFF] | |||
| Accuracy HT setting | <1.5% | |||
| Meters | Digital display: kV and mA | |||
| Measurement accuracy | 3% max + /- 2 digits | |||
| Environment Termparature | 45 C max | |||
| Stirrer | Automatic (60 Seconds). | |||
| Timer | Automatic (60 Seconds). | |||
| Enclosure | Aluminium metal cabinet with cover and lifting handles. | |||
| Ralative Humidity | Non-condensing: 80% max | |||
| Cabinet | Aluminum cabinet with handle | |||
| Model | DPC-60-5 | DPC-80-5 | DPC-120-5 | |
| Voltage Output | 0-60kV DC | 0-80kV DC | 0-120kV DC | |
| Current output | 5mA | 5mA | 5mA | |
| Trip level | 5 to 5.5mA | Control+HT unit | Control+HT unit | |
| Construction | Control+HT unit | 5 to 5.5mA | 5 to 5.5mA | |
| Dimensions | CU : 39 x 28 x 25 | CU : 39 x 28 x 25 | CU : 39 x 28 x 25 | |
| Weight kg app. | CU:6 HT:4 | CU:8 HT:10 | CU:8 HT:10 | |
Standard Accessories
- Molded mains cord 1No.
- HV Test leads for 60 kV model only 1No.
- Earth cable, 4 meter long 1No.
- Discharge rod 1No.
