Product Description

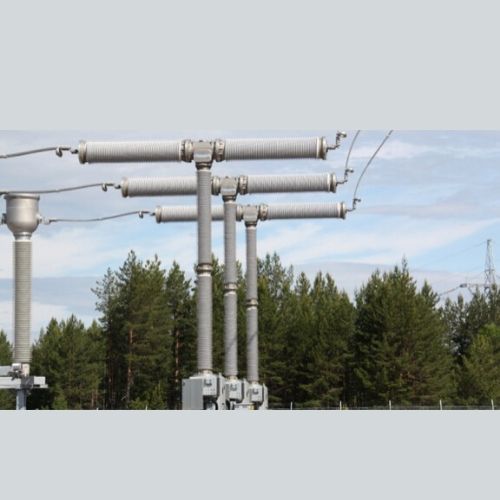

Siemens Disconnecting circuit breakers (DCB)- Air InsulatedSwitchgear

Siemens has developed a device in which the isolating distance has been integrated in the SF6 gas compartment in order to reduce external environmental influences. The DCB (disconnecting circuit breaker) isused as a circuit breaker and also as a disconnector – two functions combinedin one device. An additional air-insulated earthing switch can be mounted ontothe supporting structure for voltages up to 145 kV.

Our DCB combines the strengths of our proven product portfolio. This innovative device saves space and cuts costs while offering thehighest reliability and safety.

Main features:

Combination of circuit breaker and disconnector in one device

No visible opening distance due to the SF6-insulated disconnector function

Compact mechanical interlock which guarantees that the circuit breaker stays in the open position when used as a disconnector

Position indicators for monitoring

Optional air-insulated earthing switch (up to 145 kV)

Advantages:

Highest reliability by applying well-proven and established components from Siemens circuit breakers and earthing switches

Highest availability due to reduced maintenance interruptions

Cost- and space-saving solution by combining two devices into one

Minimized costs for transportation, maintenance,installation and commissioning, as well as civil engineering work

Compact and intelligent interlocking and position indicating device for greater safety

From a single source: documentation and technical support,assembly and installation, customer training, 24-hour service
