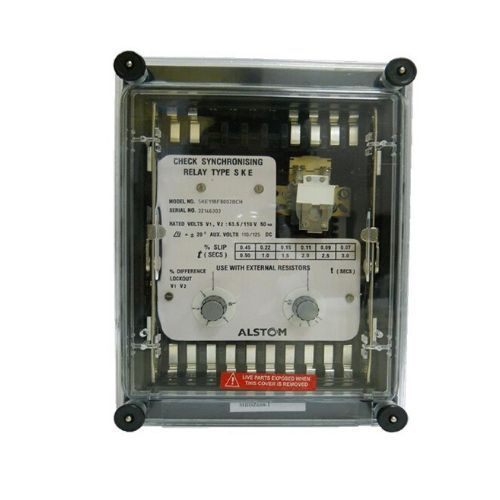

GBSKE11BF8003BCH

CHECK SYN RELAY FOR MANUAL SYN OF GENERA

Technical Specifications

Model No :     SKE11BF8003B(M)

SKE11

AUX. CURRENT OR VOLTAGE   -  220 - 230V DC

CASE SIZE                 -  1D V 20T

CONTACTS (S/R OR H/R)     -  2 N/O S/R

FLAG                      -  NO

FREQUENCY                 -  50 HZ

MOUNTING                  -  FLUSH

MTA PHASE-CHAR ANGLE      -  20 DEGREES

SETTING                   -  2 - 10% (ADJ. VOLTS)

TIME DELAY P/U OR D/O     -  0.5 - 3.0 SECS.

V.T/P.T SECONDARY         -  63.5 / 110V AC

External Resistor            3.1 K.OHMS

Name Plate                   MZF9008-002

Outline Diagram              MFJ012 & FJ0349

Wiring Diagram               MBDZ608-1
