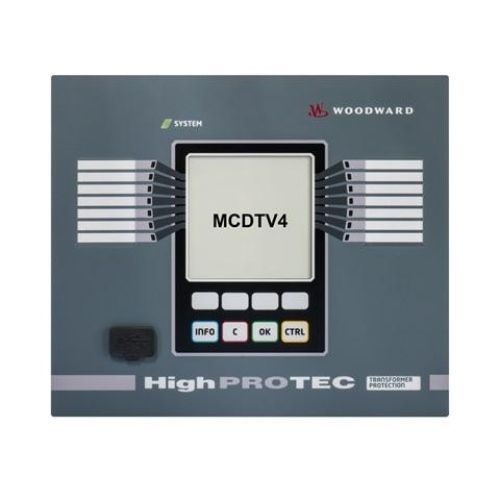

MCDTV4-2A0ATA MCDTV4 Transformer Differential Protection 1A/5A 800V

Product Description

Door mounting, 16 digital inputs, 11 output relays, phase current 1A/5A, phase current 1A/5A, voltage measuring 800V, IEC 61850 / Modbus TCP / DNP3.0 TCP/UDP, Ethernet RJ45, Temperature (RTD) Input, IEC 60870-5-103 / Modbus RTU / DNP3.0 RTU, RS485, TerminalsThe transformer differential protection relay MCDTV4 offers an all-in-one solution for HV, MV and LV transformers and it offers much more than just a differential protection package. Furthermore it can detect critical operation states based on voltage measurement (e.g. Overexcitation). The MCDTV4 provides in addition to that an Interconnection package.

This can be used for mains protection at the point of common coupling (e.g. for directional reactive power undervoltage protection). The integrated backup protection package enables the MCDTV4 to act as backup protection (e.g. for downstream breakers). Additional features like demand management are available without extra charge. The protection functions of the MCDTV4 have been adapted to comply with the requirements of the VDE AR N 4110:2018.
