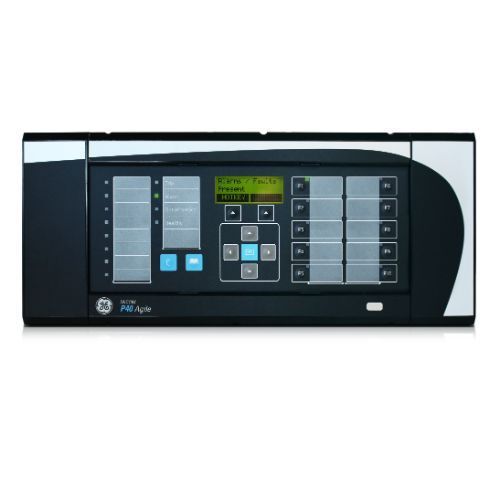

MiCOM Agile P547 Phase Comparison Relays

Product Description

MiCOM Agile P547

Phase Comparison System

MiCOM Agile P547 phase comparison relay providescomprehensive phase comparison line protection including unit protection,subcycle distance and directional earth fault (DEF) for single and three poletripping applications. It is adapted to two and three-terminal lines, and lineswith transformer tee-off feeds.

Interfacing with the Power Line Carrier equipment, whichoperates via the power line, means that the end-to-end scheme communicationrequires no external signaling channel. VT inputs may be added to enhanceprotection stability and sensitivity in long line applications, and wheresingle pole tripping is required. Adding voltage inputs supports distanceprotection and fault location and enhances other MiCOM Agile P547 functions.

Key features:

• Distance to fault location assists dispatching of maintenance crews
• Graphical programmable scheme logic eases protection scheme creation, and avoids the need for external logic controllers
• IEC 61850 redundant Ethernet, supporting self healing ring, RSTP, dual homing, PRP or HSR
• Optional mho and quadrilaterial subcycle distance protection
• Full suite of monitoring, control and recording capabilities plus fault locator, autoreclose and check synchronism
• Harsh environment coating as standard to all MiCOM relay to protect against corrosive gases such as H2S or SO2
