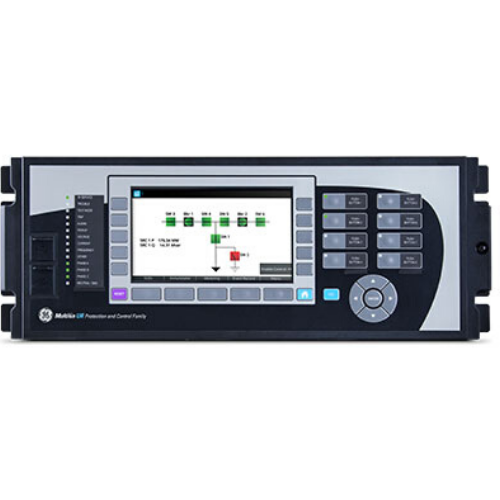

Multilin C70 Capacitor Bank Protection & Control System

Product Description

Multilin C70

Capacitor Bank Protection &Control System

The C70 is an integrated protection, control, and monitoringdevice for shunt capacitor banks based on the well established and proven URrelay platform of GE Multilin. The C70 provides both the bank and systemprotection schemes for shunt capacitor bank protection. The current andvoltage-based protection functions provide sensitive protection for grounded,ungrounded single, and parallel capacitor banks and banks with taps.

Key Benefits

• Protect capacitor banks for a variety of configurations with sensitive current and voltage balance protection functions
• Advanced IEC 61850 Ed. 1 and Ed. 2 certified implementation, complete settings via SCL files and flexible process bus support (IEC 61850-9-2LE or IEC 61850-9-2 Hardfiber) ensures interoperability, device managing optimization and reduced cost of ownership
• Routable GOOSE (R-GOOSE) enables GOOSE messages going beyond the substation, which enables wide area protection and control applications
• Robust network security enabling Critical Infrastructure Protection through user command logging, and dual permission access control
• Custom programmable logic for advanced shunt capacitor bank controls
• Reduced relay-to-relay wiring and associated installation costs through high-speed inter-relay communications
