Product Description

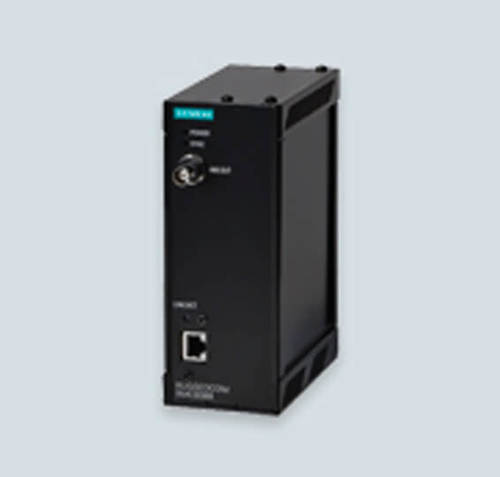

The RUGGEDCOM RMC8388 is a rugged, small form factor time converter that converts PTP (IEEE 1588) to IRIG-B or PPS time signals. The RUGGEDCOM RMC8388 saves high maintenance costs on legacy coax cabling by allowing their replacement with standard Ethernet cabling for both communications and timing purposes, all the way to the switchyard cabinets.
The RUGGEDCOM-Selector lets you configure RUGGEDCOM products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the Industry Mall.
Time interface specifications
- IRIG-B: Unmodulated (PWM) and Amplitude Modulated (sine wave)
- PPS
PTP specifications
- PTP version 2 (IEEE 1588) supported
- 100 FX, multimode, 2 km, LC Ethernet port fiber optic
- 100 TX , RJ45 / FastConnect Ethernet port copper
- Power, P2P and E2E profiles supported<
- IEEE 1344, C37.118-2005, C37.118-2011 PMU protocol support
Power supply options
- 24 nominal: 11 ~ 36 VDC
Rugged Rated for reliability in harsh environments
- Immunity to EMI and heavy electrical surges - Zero-Packet-Loss technology
- Meets IEEE 1613 (electric utility substations) Class 1 with copper ports or Class 2 with all fiber ports
- Exceeds IEC 61850-3 (electric utility substations)
- -40 °C to +85 °C operating temperature (no fans)
- Conformal coated printed circuit boards (optional)
IRIG configuration options
- B000 ~ B007, B120 ~ B127 IRIG formats supportedn
PPS configuration options
- 1 to 200 ms configurable pulse width
- 1 to 86400 seconds configurable pulse interval
Approvals and certifications
- Safety:
IEC 60950-1 EN 60950-1 CSA/UL 60950-1
- EMI:
CISPR22 EN55022 FCC Part15 Class A
- EMC:
IEC / EN 61000-6-2
- Electric utility substations:
IEEE 1613 IEC 61850-3
- Vibration:
IEC 60255-21-1, Class 2
- Shock:
IEC 60255-21-2, Class 2
- Humidity:
IEC 60068-2-30, up to 95% relative humidity
