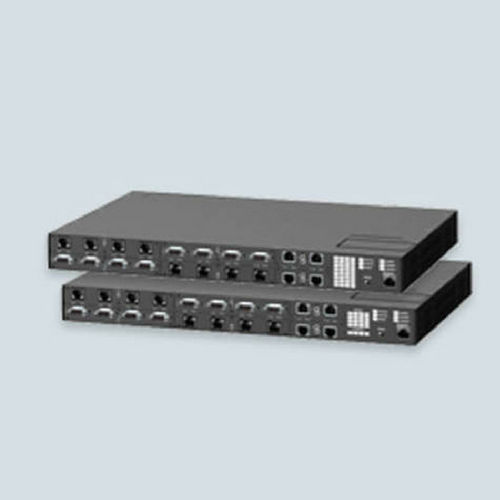

Ruggedcom RS416P Serial Device Servers

Product Description

The RUGGEDCOM RS416 is a utility-grade serial device serverwith an integrated, fully managed Ethernet switch. It features a modular designthat can support IEEE 1588 and IRIG-B time synchronization, up to 16 serialports, and up to 4 Ethernet ports. As such, it can be used to interconnect andsynchronize multiple types of intelligent electronic devices (IEDs).TheRUGGEDCOM RS416P is a utility-grade, serial device server with integrated,fully managed, 4-port Power-over-Ethernet (PoE) switch. With its modulardesign, it can support up to 16 serial ports and interconnect multiple types ofintelligent electronic devices (IEDs) with varying methods of communication.

Cyber Security Features

• Multilevel user passwords secure switch against unauthorized configuration
• SSH/SSL   extends capability of password protection to add 128-bit encryption of passwords and data as they cross the network
• Enable/disable ports  capability to disable ports so that traffic cannot pass
• 802.1Q VLAN  “ provides the ability to logically segregate traffic between predefined ports on switches
• MAC-based port security  “ provides the ability to secure ports on a switch so only specific devices / MAC addresses can communicate via a port
• 802.1x port-based network access control  “ provides the ability to lock down ports on a switch so that only authorized clients can communicate via a port
• RADIUS  “ authentication service using MD5 hash and providing centralized password management
• SNMPv3 “ encrypted authentication access security and data encryption (CBC- DES with 56-bit encryption key)
• Secure Socket Layer  “ Web-based management using SSL with data encryption (128-bit encryption key)
• RSA “ 1,024-bit key for key management and key exchange
• TACACS+  Terminal Access Control and Accounting Services Client provides encrypted authentication and authorization
• Point-to-Point Protocol (PPP)  “ using CHAP (MD5 Hash) authentication service
• SFTP  “ Secure File Transfer Protocol using SSH encryption
