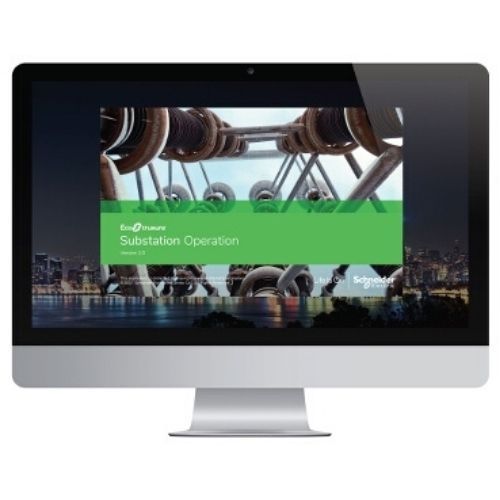

Schneider EcoStruxure™ Substation Operation GTW SCADA and EMS Gateway

Product Description

SCADA & EMS Gateway. Communication Front End for the new generation of Digital Substations

The EcoStruxureâ„¢ Substation Operation Gateway (formerly known as PACiS Gateway) is responsible for data exchange between two networks: the EcoStruxureâ„¢ Substation Operation Substation Network with its IEC61850 devices and the remote SCADA or EMS network

Features

The EcoStruxureâ„¢ Substation Operation GTW (Gateway) is in the EcoStruxureâ„¢ Substation Operation Digital Control System architecture in charge of data exchange between two networks: the PACiS Network with its UCA2 or IEC61850 devices and the dedicated network with remote SCADA (Supervisory Control And Data Acquisition) or EMS (Energy Management System).

Several protocols are implemented to make available communication with SCADA and EMS:

• IEC 60870-5-101
• IEC 60870-5-104
• Serial link GI74
• Modbus
• DNP3.0
• OPC

The EcoStruxureâ„¢ Substation Operation GTW architecture allows simple and efficient integration of new or existing protocols. EcoStruxureâ„¢ Substation Operation GTW may support more than one protocol and also complete redundancy (communication medium and physical device).

Standard Manufacturers Warranty: 1 year
