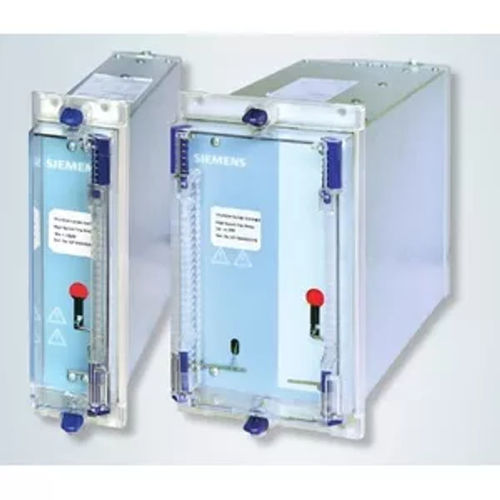

Siemens Reyrolle 7PJ15 HIGH SPEED TRIP RELAY

Product Description

The 7PJ1521 and 7PJ1524 High Speed Trip relay is amulti-contact attracted armature relay designed to IEC 60255. High burdenrelays with immunity to capacitance discharge currents. They are also suitablefor certain applications where they are remote from the initiation signal. Ahigh burden also permits reliable operation of current operated series repeatrelays. TR relays can be provided with an instantaneous or time-delayedcut-off. Benefits The features of the High Speed Trip Relay are: • High speed, highburden, positive action, and instantaneous cutoff.

ʉۢ The 7PJ1524 triprelay can be used with the Trip Circuit Supervision relay (7PJ13) to monitorand supervise the integrity of the trip circuit with coil supervision terminal.

• It is supplied in a draw-out type case.

The 7PJ1521 & 7PJ1524 high-speed trip relay is amulti-contact attracted armature relay designed to IEC 60255.

Features

The features of the High-speed trip relay are:

• High-speed, high burden, positive action, and instantaneous cutoff.
• The 7PJ1521 & 7PJ1524 trip relay can be used with the Trip Circuit Supervision relay (7PJ13) to monitor and supervise the integrity of the trip circuit with coil supervision terminal.
• It is supplied in a draw-out type case.

Functions

The high-speed trip relay type 7PJ15 is mainly used for alltypes of control and protection circuits in power stations and industrialapplications, where a higher grade of reliability and high contact rating isstipulated. The 7PJ15 relay acts as a high-speed element and contactmultiplication in tripping and signalling circuits of protective relays.

·        The high-speed trip relay is used in thefollowing applications:

·        Tripping and lock

·        Inter tripping and remote tripping interface forSCADA
