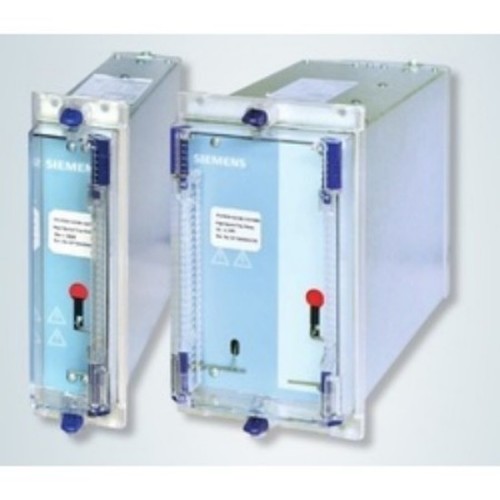

Siemens Reyrolle 7PJ15 High Speed Trip Relay Auxiliary Relay

Product Description

7PJ1524 High Speed Trip relay is a multi-contact attracted armature relays designed to IEC 60255-1.- High speed, high burden, positive action, instantaneous cutoff.- 7PJ1524 trip relay allows to use the Trip Circuit Supervision relay (7PJ13) to monitor and supervise the integrity of trip circuit with coil supervision terminal.- Supplied in draw-out type case.- Robust design for a long, reliable service life.

High burden, Trip Relay Series High burden relays with immunity to capacitance discharge currents. These relays are suitable for applications where they are located remotely from the initiation signal.

Variants MLFB Ordering Code7PJ1524-1JC60-1AF0 High Speed Trip Relay, 10 Contact(8NO+2NC), High Burden, Contact Hand Reset + Electrical Reset,Hand Reset Flag, 125 V DC7PJ1524-1JC60-1AH0 High Speed Trip Relay, 10 Contact(8NO+2NC), High Burden, Contact Hand Reset + Electrical Reset,Hand Reset Flag, 240 V DC7PJ1524-1UC80-1CF0 High Speed Trip Relay, 20 Contact(18NO+2NC), High Burden,Contact Hand Reset + Electrical Reset, Hand Reset Flag, 125 V DC7PJ1524-1UC80-1CH0 High Speed Trip Relay, 20 Contact(18NO+2NC), High Burden,Contact Hand Reset + Electrical Reset, Hand Reset Flag, 240 V DC
