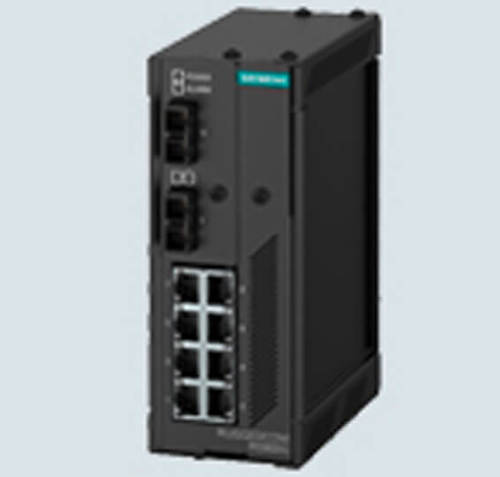

Siemens Ruggedcom RS900G Ethernet switch
Product Details:
X
Siemens Ruggedcom RS900G Ethernet switch Price And Quantity
- 1 Piece Piece
Product Description
The RUGGEDCOM RS900G is a 10-port utility-grade, fully managed Ethernet switch, providing dual fiber optical Gigabit Ethernet ports and eight fast Ethernet copper ports. Designed to operate reliably in harsh environments, the RS900G provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found in electric utility substations, factory floors or in curb side traffic control cabinets. An operating temperature range of -40°C to +85°C combined with hazardous location certification, optional conformal coating and a galvanized steel enclosure allows the RS900G to be placed in almost any location.
The RUGGEDCOM-Selector lets you configure RUGGEDCOM products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the Industry Mall.
Ethernet Ports
- 2 fiber optic Gigabit Ethernet ports (1000BaseX)
- 8 fast Ethernet ports (10/100BaseTX)
- Multiple fiber options (LC, SC, SFP Pluggable Optics)
- Bidirectional single strand fiber support
- Long-haul optics allow Gigabit distances up to 70 km
Rugged Rated for Reliability in Harsh Environments
- Immunity to EMI and heavy electrical surges
- Meets IEEE 1613 (electric utility substations)
- Exceeds IEC 61850-3 (electric utility substations)
- Exceeds IEC 61800-3 (variable-speed drive systems)
- Exceeds IEC 61000-6-2 (generic industrial)
- Exceeds NEMA TS-2 (traffic control equipment)
- Hazardous location certification: Class 1 Division 2
- 40°C to +85°C operating temperature (no fans)
- Conformal coated printed circuit boards (optional)
Cybersecurity Features
- Mutilevel user passwords
- SSH/SSL (128-bit encryption)
- Enable/disable ports, MAC-based port security
- Port-based network access control (802.1x)
- VLAN (802.1Q) to segregate and secure network traffic
- RADIUS centralized password management
- SNMPv3 authentication and 56-bit encryption
RUGGEDCOM Operating System (ROS) Features
- Simple plug and play operation automatic learning, negotiation, and crossover detection
- MSTP (802.1Q-2005, formerly 802.1s)
- RSTP (802.1w) and Enhanced Rapid Spanning Tree (eRSTP) network fault recovery (<5 ms)
- Quality of service (802.1p) for real-time traffic
- VLAN (802.1Q) with double tagging and GVRP support
- Link aggregation
- IGMP snooping for multicast filtering
- Port rate limiting and broadcast storm limiting
- Industrial automation features (e.g. Modbus)
Management Tools
- Web-based, Telnet, CLI management interfaces
- SNMP v1/v2/v3 (56-bit encryption)
- Remote monitoring (RMON)
- Rich set of diagnostics with logging and alarms
Universal Power Supply Options
- Fully integrated power supply
- Universal high-voltage range: 88~300 VDC or 85~264 VAC
- Dual low-voltage DC inputs: 24 VDC (10~36 VDC) or 48 VDC (36~72 VDC)
- Terminal blocks for reliable, maintenance-free connections
- CSA/UL 60950 safety approved to +85°C
