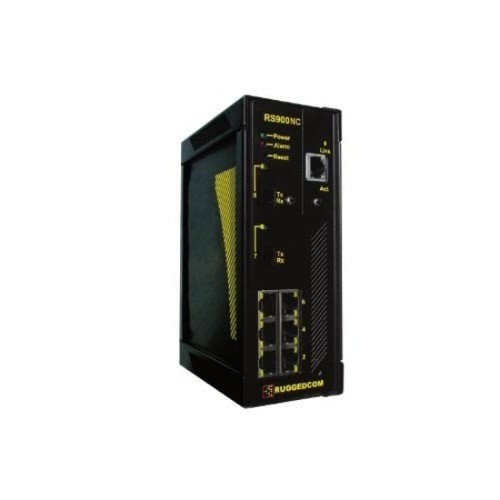

Siemens Ruggedcom RS900NC Ethernet Switch

The Rugged Switch RS900NC is a 9-port industrially hardened, fully managed, Ethernet switch specifically designed to operate reliably in electrically harsh and climatically demanding environments. The RS900NC provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb side traffic control cabinets. An operating temperature range of 40 to +85°C(- 40 to +185°F) coupled with hazardous location certification (Class 1 Division 2) allows the RS900NC to be placed in almost any location. The RS900NC is packaged in a compact, galvanized steel enclosure that allows either DIN or panel mounting for efficient use of cabinet space. The RS900NC provides an integrated power supply with a wide range of voltages (88-300VDC or 85-264VAC) for worldwide operability or dual-redundant, reversible polarity, 24VDC and 48VDC power supply inputs for high availability applications requiring dual or backup power inputs. The RS900NCs superior ruggedized design coupled with the embedded Rugged Operating System (ROS) provides improved system reliability and advanced net working features making it ideally suited for creating Ethernet networks for mission-critical, real-time, control applications. The versatility and wide selection of fiber optics allows the RS900NC to be used in a variety of applications. The RS900NC provides up to three 100Mbps fiber optical Ethernet ports for creating a fiber optical backbone with high noise immunity and long haul connectivity. All Rugged Com products are backed by a five year warranty and unsurpassed technical support.

Features and Benefits:

• Ethernet Ports
• Up to 9 Ports: 6 Base 10/100 BaseTX ports with option for 3 additional Fiber or Copper ports

• LC, SC, ST, MTRJ
• Multi mode and Single mode optical transceivers
• Long haul optics allow distances up to 90 km

• Multi-level user passwords
• SSL with 56-bit encryption
• Enable/disable ports, MAC based port security
• Port based net work access control (802.1x)
• VLAN (802.1Q) to segregate and secure net work traffic
• RADIUS centralized password management
• SNMPv3 authentication and 56-bit encryption

• Web-based, Telnet, CLI management inter face
• SNMP v1/v2/v3 (56-bit encryption)
• Remote Monitoring (RMON)
• Rich set of diagnostics with logging and alarms

• Fully integrated power supply
• Universal high-voltage range: 88-300VDC or 85-264VAC
• Dual low-voltage DC inputs: 24VDC (10-36VDC) or 48VDC (36-72VDC)
• Terminal blocks for reliable maintenance free connections
• CSA/UL 60950 safety approved to +85°C
