Product Description

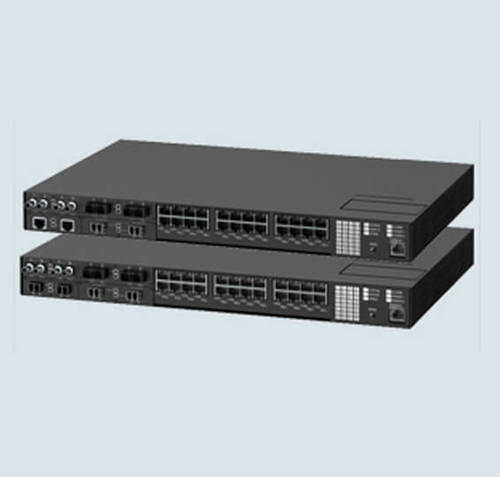

The RUGGEDCOM RSG2300/RSG2300P is a utility-grade, fully managed, 32-Port Managed Ethernet Switch with 4 Modular Gigabit Uplink Ports. The RSG2300's modular flexibility offers 10BaseFL /100BaseFX /1000BaseX fiber and 10/100/1000BaseTX copper port combinations.
The RUGGEDCOM RSG2300 is a utility-grade, fully managed, 32-Port managed Ethernet switch with 4 modular gigabit uplink ports. With its modular flexibility, the RSG2300 offers 10BaseFL /100BaseFX /1000BaseX fiber and 10/100/1000BaseTX copper port combinations. Optional front or rear mount connectors make the RSG2300 highly versatile and suitable for any application. It can support multiple fiber connectors (ST, MTRJ, LC, SC) without loss of port density.
The RUGGEDCOM RSG2300P is a utility-grade, fully managed, power-over-Ethernet (PoE) enabled, modular Ethernet switch. It is specifically designed to operate reliably in electrically harsh and climatically demanding utility substation and industrial environments. The RSG2300P comes standard with 2 10/100BaseTX 802.3af (PoE) compliant Ethernet ports, with the option to add an additional 2 PoE ports. It offers modular flexibility for up to 6 additional Ethernet ports, including 10BaseFL/100BaseFX/1000BaseX fiber and 10/100/1000BaseTX copper port combinations. The highly versatile RSG2300P can support multiple fiber types and connectors (ST, MTRJ, LC, SC) without loss of port density. It is an ideal solution to power and connect several Ethernet devices (e.g. IP phones, video cameras and wireless access points) where AC power is not available or cost-prohibitive to provide locally.
Rugged Rated for Reliability in Harsh Environments
- Immunity to EMI and heavy electrical surges:
- Zero-Packet-Loss Technology - Meets IEEE 1613 Class 1 (electric utility substations) - Exceeds IEC 61850-3 (electric utility substations) - Exceeds IEC 61800-3 (variable-speed drive systems) - Exceeds IEC 61000-6-2 (generic industrial) - Exceeds NEMA TS-2 (traffic control equipment)
- Operating temperature: -40°C to +85 °C (no fans)
- Conformal coated printed circuit boards (optional)
- 18 AWG galvanized steel enclosure
- Hazardous location certification: Class 1 Division 2
Cybersecurity Features
- Mutilevel user passwords
- SSH/SSL (128-bit encryption)
- Enable/disable ports, MAC-based port security
- Port-based network access control (802.1x)
- VLAN (802.1Q) to segregate and secure network traffic
- RADIUS centralized password management
- SNMPv3 authentication and 56-bit encryption
RUGGEDCOM Operating System (ROS ) Features
- Simple plug and play operation automatic learning, negotiation and crossover detection
- MSTP 802.1Q-2005 (formerly 802.1s)
- RSTP (802.1w) and Enhanced Rapid Spanning Tree (eRSTP) network fault recovery (<5 MS)
- Quality of service (802.1p) for real-time traffic
- VLAN (802.1Q) with double tagging and GVRP support
- Link aggregation
- IGMP snooping for multicast filtering
- Port rate limiting and broadcast storm limiting
- Port configuration, status, statistics, mirroring, security
- SNTP time synchronization (client and server)
- Industrial automation features (e.g. Modbus)
Management Tools
- Web-based, Telnet, CLI management interfaces
- SNMP v1/v2/v3 (56-bit encryption)
- Remote monitoring (RMON)
- Rich set of diagnostics with logging and alarms
