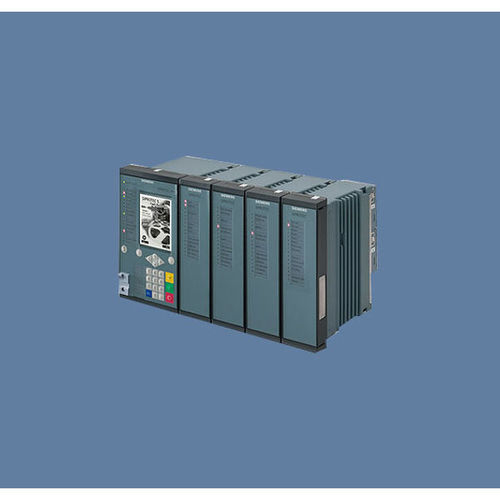

Siemens SIPROTEC 7KE85 Fault recorder numerical relays

Product Description

SIPROTEC 7KE85

Powerful fault recorders with integrated measurement ofsynchrophasors (PMU) according to IEEE C37.118 and power quality measurementaccording to IEC 61000-4-30. Due to the great flexibility of trigger functions,the SIPROTEC 7KE85 is ideally suited for monitoring the entire energy valueadded chain, from generation to distribution. The powerful automation andflexible configuration with DIGSI 5 complements the range of functions.

Main function:

Fault Recorder

Inputs and outputs:

• 4 predefined standard variants with up to 40 analog channels,
  43 binary inputs,
  33 binary outputs

Hardware flexibility:

• Flexibly adjustable and expandable I/O quantity structure within the scope of the SIPROTEC 5 modular system.

Housing width:

• 1/3 to 1/1 19"

As standard:

• Conformal coating

                                                                                                                                                                                                                                Cybersecurity functionality, such as role-basedaccess control (RBAC), logging of security-related events or signed firmware

Simple, quick, andsecure access to device data via a standard Web browser without additionalsoftware

        IEC 61850-9-2 Client, IEC 61850-9-2 Merging Unit, IEC 60870-5-103, IEC 60870-5-104,Modbus TCP, DNP3 serial and TCP, PROFINET IO

        Intelligent terminal technology enables prewiringand a simple device replacement
