SIEMENS SIPROTEC 7SL82 LINE DIFFERENTIAL PROTECTION NUMERICAL RELAY

Product Description

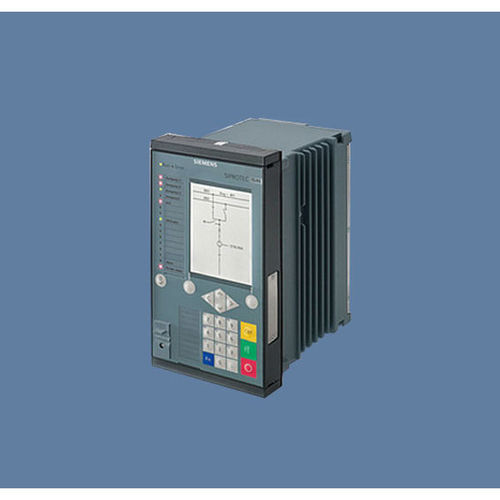

SIEMENS SIPROTEC 7SL82 LINE  DIFFERENTIAL PROTECTION NUMERICAL RELAY

The combined line differential and distance protection relaySIPROTEC 7SL82 is part of the new SIPROTEC 5 series modular field devices.Thisdevice is especially designed for cost effective and compact medium voltage andsub-transmission application areas.With its flexibility and itshigh-performance DIGSI 5 engineering tool, the SIPROTEC 7SL82 fits perfectlyfor protection, control, monitoring, and measuring applica-tions in electricalenergy systems.Main function:Distance Protection for medium ansub-transmissionTripping:3-pole, min. tripping time 19 msInputs and outputs:-4current transformers, 4 voltage transformers (optional), 11 or 23 binaryinputs, 9 or 16 binary outputsHardware flexibility:Various hardware quantitystructures are available for binary inputs and outputs in the 1/3 base module,it is not possible to add 1/6 expansion modules, available with large and smalldisplayWidth of housing:1/3 x 19'inch'

All functions can be configured freely with DIGSI 5. For theapplication of some of the functions, you require the appropriate number offree function points within the device. The function point calculator in theonline configurator provides support in determining the required number offunction points for your device.

• Minimum tripping time 19 ms
• Main protection function is differential protection with adaptive algorithm for maximum sensitivity and stability
• Several distance-protection functions selectable as backup protection or secondary main protection: Classic, reactance method (RMD), impedance protection for transformers
• Directional backup protection and various additional functions
• Detection of ground faults of any type in isolated or arc-suppression-coil-ground systems using the following functions: 3I0>, V0>, fleeting contact, Cos-/SinPhi, harmonic, dir. detection of intermittent ground faults and admittance
• Arc protection
• Ground fault detection using the pulse location method
• Detection of current-transformer saturation for fast tripping with high accuracy
• Adaptive power-swing blocking
• Automatic frequency relief for load shedding in case of underfrequency, taking account of changed infeed conditions due to decentralized power generation
• Reactive power-undervoltage protection (QU protection)
• Detection of current and voltage signals up to the 50th harmonic with high accuracy for selected protection functions (such as thermal overload protection) and operational measured values
• Control, synchrocheck and switchgear interlocking protection
• Graphical logic editor to create powerful automation functions in the device
• Single line representation in small or large display
• Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE)
• 2 optional pluggable communication modules, usable for different and redundant protocols (IEC 61850, IEC 60870-5-103, IEC 60870-5-104, Modbus TCP, DNP3 serial and TCP, PROFINET IO)
• Serial protection data communication via optical fibers, two-wire connections and communication networks (two-wire connections and communication networks (SDH networks, MPLS networks, for example using IEEE C37.94, and others), including automatic switchover between ring and chain topology
• Redundancy protocols PRP and HSR
• Cyber to with NERC CIP and BDWE Whitepaper requirements
• Phasor Measurement Unit (PMU) for synchrophasor measured values and IEEE C37.118 protocol
• Time synchronization using IEEE 1588
• Powerful fault recording (buffer for a max. record time of 80 sec. at 8 kHz or 320 sec. at 2 kHz)
• Auxiliary functions for easy tests and commissioning
