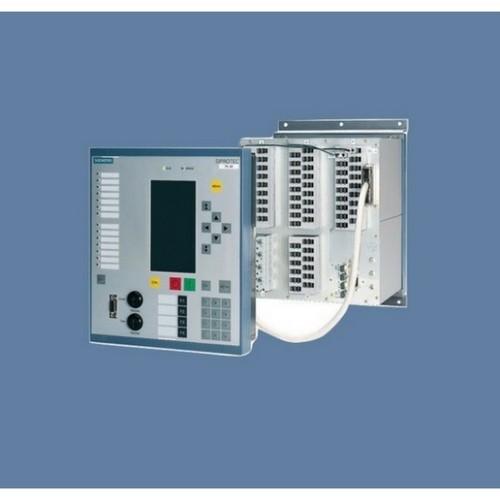

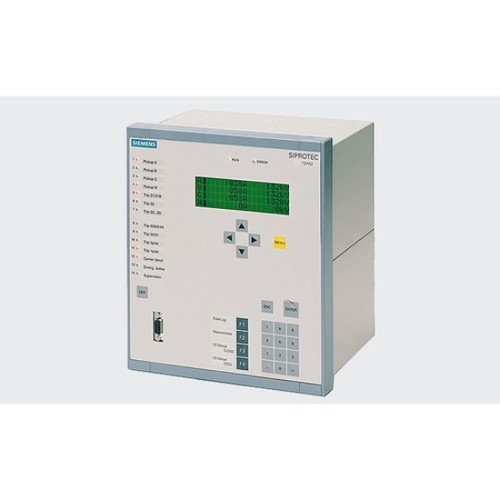

Siprotec 6MD61 Protection Relay, Siemens Siprotec Multifunction Protection Relay, Distance protection Relay for all voltage levels

Siprotec 6MD61 Protection Relay, Siemens Siprotec Multifunction Protection Relay, Distance protection Relay for all voltage levels:Electric arcs are among the most dreaded fault scenarios in power supply engineering. They can be caused by a multitude of factors, such as aging of the insulation, environmental conditions as well as operating errors. Electric arcs can cause heavy damage to switchgear and present a serious hazard to operating personnel.

The SIPROTEC 5 arc protection detects electric arcs through an optical sensor. Arcs are detected reliably and quickly as they develop, and the protective device can trip immediately and without delay times.The arc protection module is part of the new SIPROTEC 5 series of modular, flexible and intelligent bay devices and can be used in the following device types:

• SIPROTEC 7SJ8
• SIPROTEC 7SA8
• SIPROTEC 7SD8
• SIPROTEC 7SL8
• SIPROTEC 7VK8
• SIPROTEC 7UT8
• SIPROTEC 7SK8
• SIPROTEC 7UM8

Functions:

• Reliable arc detection
• Extremely fast tripping time
• Minimization of thermal damage
• Higher personal safety
• Minimization of downtimes
• EMI safety thanks to purely optical sensors
• Quick and easy retrofitting
