Product Description

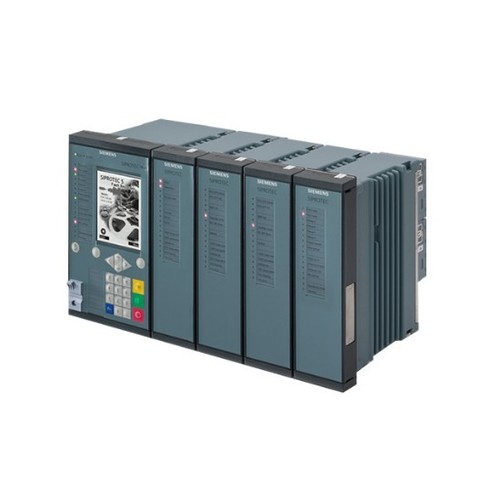

7KE85 Fault Recorder
The SIPROTEC 7KE85 is a powerful fault recorder with inte-grated measuring of synchrophasors (PMU) according to IEEE C37.118 and Power Quality measurement according to IEC 61000-4-30. Due to the high flexibility of trigger functions, the SIPROTEC 7KE85 is ideally suited to monitor the entire energy value chain from generation to distribution. The powerful automation and flexible configuration with DIGSI 5 comple-ments the range of functions.
| Main function: | Fault Recorder |
| Inputs and outputs: | 4 predefined standard variants with up to 40 current and 40 voltage transformers, 43 binary inputs, 33 binary outputs |
| Hardware flexibility: | Flexibly adjusted and expandable I/O quantity structure within the scope of the SIPROTEC 5 modular system |
| Housing width | 1/3 to 1/1 x 19 |
- Up to 40 analog channels
- Fast scan recorder
- Up to 2 slow scan recorders
- Up to 5 continuous recorders and 2 trend recorders
- Power Quality recordings according to IEC 61000-4-30 (Harmonics, THD, TDD in preparation)
- Sequence of event recorder for continuous recording of binary status changes and IEC 61850 GOOSE Messages
- Applicable as Phasor Measurement Unit (PMU) according to IEEE C37.118 standard
- Transmission of records and triggering via IEC 61850 GOOSE messages
- Sampling frequencies parameterizable from 1 kHz to 16 kHz
- The user can allocate the 16-gigabyte buffer (16 GByte) to the various recorders
- Intelligent monitoring routines of the storage medium ensure a high security of the archived data
- Loss-free data compression
- Time synchronization via Precision Time Protocol (PTP) IEEE 1588 Protocol, IRIG-B, DCF77 and SNTP
- Free routing of measured values to the individual recorders
- Free combination of the measuring groups for power calculation
- Quality Attributes for representing the current signal quality in a time signal view
- The trigger functions of a function block are the value of the fundamental component, RMS value, zero-sequence/positive sequence/ negative-sequence system, frequency, active power/ reactive power / apparent power
- Level trigger and gradient trigger for each trigger function
- Flexible cross, network and manual trigger
- Creating of own trigger functions using the graphic automation editor CFC (Continuous Function Chart)
- Trigger functions by combining single-point/double-point indications, analog values, binary signals, Boolean signals and GOOSE messages
- Cyber Security according NERC CIP and BDEW White paper
