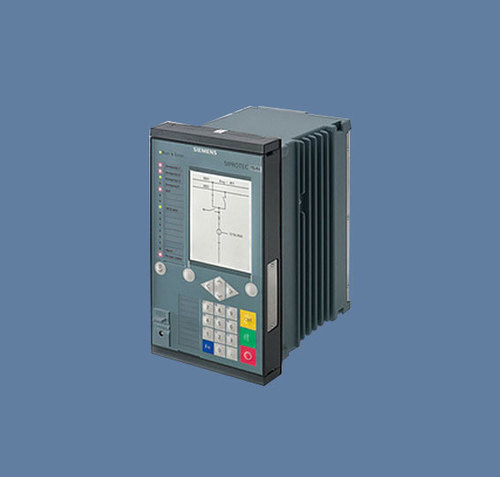

Siprotec 7SL87 differential distance protection automation device
Product Details:
X
Siprotec 7SL87 differential distance protection automation device Price And Quantity
- 1 Piece Piece
Siprotec 7SL87 differential distance protection automation device Trade Information
- Cash Against Delivery (CAD) Cash on Delivery (COD) Cheque Letter of Credit (L/C) Days after Acceptance (DA) Cash in Advance (CID)
- All India
Product Description
The combined line differential and distance protection SIPROTEC 7SL87 is part of the new SIPROTEC 5 series of modular, flexible and intelligent digital field devices.
With its modularity and flexibility and its high-performance DIGSI 5 engineering tool, the SIPROTEC 7SL87 fits perfectly for protection, control, monitoring, and measuring applications in electrical energy systems.
Main function:Differential and Distance Protection
Tripping:
- 1- and 3-pole, min. tripping time 9 ms
Inputs and outputs:
- 12 predefined standard variants with 4/4 or 8/8 current/voltage transformers, 5 to 31 binary inputs, 8 to 46 binary outputs
Hardware flexibility:Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system.
Width of housing:1/3 x 19'' to 2/1 x 19''
All functions can be configured freely with DIGSI 5. For the application of some of the functions, you require the appropriate number of free function points within the device. The function point calculator in the online configurator provides support in determining the required number of function points for your device.
- Minimal tripping time 9 ms
- Main protection function is differential protection with adaptive algorithm for maximum sensitivity and stability even at different CT errors, CT saturation and capacitive charging currents
- Diverse distance protection methods as backup or main 2 protection available: Classic, reactance method (RMD), impedance protection for transformers
- Directional backup protection and various additional functions
- Adaptive power swing blocking, Out-of-Step protection
- Recognition of static and transient ground faults (transi-ent function) in resonant-grounded and isolated networks
- Arc protection
- Under voltage-controlled reactive power protection
- 1-/3-pole Automatic reclosing function
- Control, synchro check and system interlocking
- Powerful automation with graphical CFC (Continuous Function Chart)
- Support of single line in small and large displays
- Integrated electrical Ethernet port J for DIGSI and IEC 61850 functionality (reporting)
- Up to four optional pluggable communication modules usable for different and redundant protocols (IEC 61850, IEC 60870-5-103, IEC 60870-5-104, Modbus TCP, DNP3 (serial and TCP)
- Serial protection data communication over fiber-optic cable, two-wire connections and communication net-works (IEEE C37.94 et al.) including automatic switch over between ring and chain topology
- High available Ethernet redundancy protocols PRP and HSR
- Cyber Security acc. NERC CIP and BDEW White paper
- Phasor Measurement Unit (PMU) for synchrophasor-measured values and IEEE C37.118 protocol
- Time synchronization IEEE 1588
- Powerful fault recording
- Additional functions for simple tests and easy commissioning
- Adjustable I/O quantity within the scope of the SIPROTEC 5 modular system
