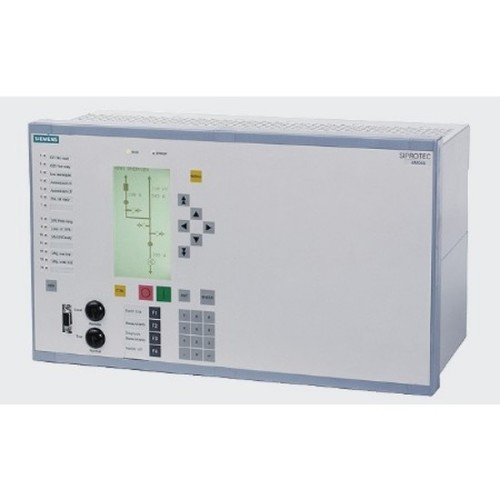

Siprotec 7VU683 high speed busbar transfer device - frequency and voltage protection device
Product Details:
X
Siprotec 7VU683 high speed busbar transfer device - frequency and voltage protection device Price And Quantity
- 1 Piece Unit
- INR
Siprotec 7VU683 high speed busbar transfer device - frequency and voltage protection device Trade Information
- All India
Product Description
Functions High speed busbar transfer functionStarting conditions
- NORMAL condition
- FAULT condition
- Inadmissible under-voltage
- Inadmissible under-frequency
- Inadvertent CB open
Switching sequences
- parallel auto switching sequence
- parallel half-auto switching sequence
- simultaneous switching sequence
- sequential sequence
- fast transfer mode
- real-time fast transfer mode
- in-phase transfer mode
- res-volt transfer mode
- long-time transfer mode
- Single busbar and segmented single busbar supported
- High speed contact with approx.1ms for closing
- Permission of bi-direction switching settable
- Low voltage load-shedding settable
- CB de-coupling when OPEN failed
- NORMAL start locally or remotely
- Manual CB closing to block HSBT
- ON/OFF set locally or remotely
- HSBT test mode supported
- Overcurrent protection
- Ground overcurrent protection
- Overcurrent protection for busbar energization
- Ground overcurrent protection for busbar energization
- Self-supervision of the device
- Oscillographic fault recording
- Phase sequence of busbar voltage
- Voltage circuit of busbar and line
- PC front port for setting with DIGSI 4
- System interface
- IEC 60870-5-103, redundant optional
- IEC 61850, Ethernet
- Profi bus-DP or Modbus RTU
- Service interface for DIGSI 4 (modem)
- Time synchronization via IRIG B/DCF 77
