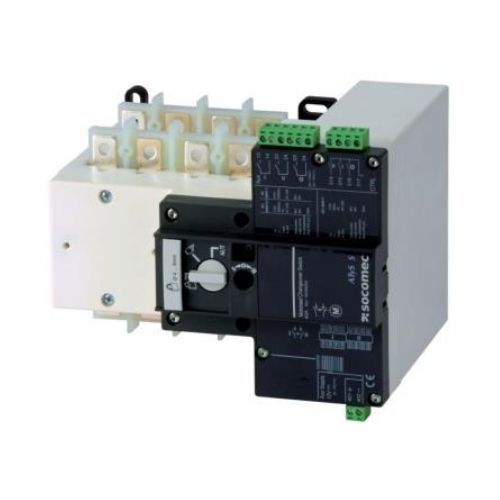

Socomec 125A 4 pole (4) ATyS S/Sd Remotely operated Transfer Switches (RTSE)

Product Description

Socomec 125A ATyS S/Sd products are 4 pole remotely operated transfer switches with positive break indication. They enable the on-load transfer of two three-phase supplies via remote volt-free contacts, from either an external automatic controller, using pulse logic, or a switch.

They are intended for use in low voltage power supply systems where a brief interruption of the load supply is acceptable during transfer.

Technical Specification

Advantages

Extensive power supply range

The ATyS S is available in four supply versions, each with a broad range (+/-30%). The four versions are:

Safety and reliability

ATyS S products use stable position technology, ensuring constant pressure on the contacts and preventing premature faults. In addition, they do not require a power supply to maintain position, thus protecting their loads from voltage fluctuations.

Easy integration

ATyS S products can be easily installed inside enclosures. Their design, and in particular their compact size, enables integration within most 200 mm deep enclosures.

Simplified maintenance

Maintenance can be carried out easily under load, with manual operation still available. The control and motorisation section can be replaced simply by removing 4 screws, with no work required on the installation cabling.

ATyS d S: Dual power supply

In addition to the functions offered by the ATyS S, the ATyS d S incorporates supply redundancy without the need for additional wiring.This is obtained by integrating a double supply (2 independent supplies) directly within the product.

The solution for

Strong Points

Conformity to standards

We also provide SOCOMEC transfer switches required for different applications in industry grids.

A. SOCOMEC Transfer Switches:

Full range of Manual, Remotely Operated and Automatic Transfer Switches from 16 to 6300 Amps. Providing an unrivalled benchmark in source switching, SOCOMEC is continuously innovating to ensure ever more efficient ways to guarantee the continuity of distribution and, therefore, the rate of availability of your energy. From compact manual transfer switches to the enclosed ATS Bypass, the range of switches covers, as standard, the majority of your switching needs.

1. Automatic transfer switches range

2. Remotely operated transfer switches range

3. Manual transfer switches range:
