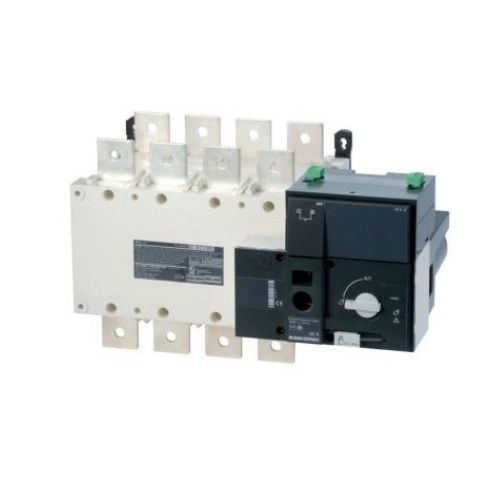

Socomec 315A ATyS r Remotely operated Transfer Switches (RTSE)

Product Description

Socomec 315A ATyS r 3 or 4 pole remotely operated motorised transfer switches with positive break indication.

They enable the on-load transfer of two three-phase power supplies via remote volt-free contacts, from either an external automatic controller, using pulse logic, or a switch. They are intended for use in low voltage power systems where interruption of the load supply is acceptable during transfer

Technical Specification

WATCHDOG RELAY TO CHECK PRODUCT AVAILABILITY

ATyS r products are equipped with a Watchdog relay which constantly monitors your product, thereby securing the installation. This relay informs in real time the user of the product's availability, i.e. whether it is operational and ready for source switching.

INTEGRATED AUXILIARY CONTACTS

As part of the product monitoring function, the ATyS r enable the transmission of information relating to their position. This is possible thanks to the standard integration of an auxiliary contact for each position.

EXTENDED POWER SUPPLY RANGE

ATyS r products offer greater availability thanks to their extensive power supply range of 208 to 277 VAC ± 20%.

EVEN MORE ROBUST

The updated design includes metal mounting legs across the entire ATyS range, improving the overall robustness of the switches. It also allows an easier and trouble-free mounting of the switches on a back plate with pre-assembled screws.

The solution for

Strong points

Conformity to standards

External automatic controller

> The ATyS r and ATyS d are compatible with our ATyS C30 external controllers (for mains/mains and mains/ genset applications) and ATyS C40 controllers (for genset/genset applications).

We also provide SOCOMEC transfer switches required for different applications in industry grids.

A. SOCOMEC Transfer Switches:

Full range of Manual, Remotely Operated and Automatic Transfer Switches from 16 to 6300 Amps. Providing an unrivalled benchmark in source switching, SOCOMEC is continuously innovating to ensure ever more efficient ways to guarantee the continuity of distribution and, therefore, the rate of availability of your energy. From compact manual transfer switches to the enclosed ATS Bypass, the range of switches covers, as standard, the majority of your switching needs.

1. Automatic transfer switches range

2. Remotely operated transfer switches range

3. Manual transfer switches range:
