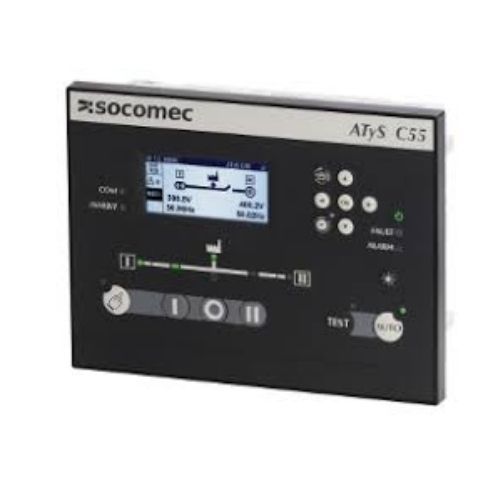

Socomec Atys C55 Ats Controller Mid-level Functionalities
Product Details:
X
Product Description
Socomec ATyS C55 ATS Controller Mid-level functionalities
SOCOMEC ATyS C55 ATS Controller is a complete ATSE controller that can be used to pilot a remotely operated transfer switch of any technology: motorised switches (e.g. ATyS r, ATyS S or ATyS d M), circuit breakers or contactors. ATyS C55 ensure the automatic or remotely controlled transfer from one source to another, with configurable timers and thresholds, for any combination of sources: 2 transformers, 1 transformer and 1 genset or 2 gensets.
- Weight : 1000.000 in Gram
- Brand : Socomec
- Technical Specification
- Model: ATyS C55
ATyS C55 ATS Controller Advantages
- Fast commissioning
- On initial power up, the ATyS C55's smart wizard will guide the operator through the commissioning process.
- Versatile
Fast commissioning
On initial power up, the ATyS C55's smart wizard will guide the operator through the commissioning process.
Versatile
The ATyS C55 is compatible with contactors, breakers and switches. It can also work for all type of 2-source applications combining mains and gensets.
Clear visualisation and operation
- High-resolution LCD screen with clear defined messages.
- Real-time pop-ups to show timers, alarms, faults and information alerts.
- Quick and easy access to main functions through the front face with direct key input.
- Complete configuration can be achieved through the front face or via software (Easy Config).
- Wide voltage range (88-576VAC).
- 24 VDC aux power supply (for optional use).
- 2 latching relays.
- Smart commissioning wizard.
- IP65 degree of protection with gasket (accessory).
- 1000 Alarms and Events.
- 6 fully configurable I/O.
- Genset scheduler.
- Door or back plate mounting.
- Main/Main, Main/Genset and Genset/Genset applications.
- Easyconfig configuration software.
- RS485 Modbus communication.
- Ethernet, SNMP, BACnet using DIRIS M-70 gateways. Includes Webserver.
- A DIRIS Digiware D-70 gateway can be utilised as a remote display for multiple ATyS C55/C65 controllers; the D-70 also provides Ethernet, SNMP & BACnet connectivity.
Apart from the mid level ATSE Controller, we also provide SOCOMEC transfer switches required for different applications in industry grids.
SOCOMEC Transfer Switches:
Full range of Manual, Remotely Operated and Automatic Transfer Switches from 16 to 6300 Amps. Providing an unrivalled benchmark in source switching, SOCOMEC is continuously innovating to ensure ever more efficient ways to guarantee the continuity of distribution and, therefore, the rate of availability of your energy. From compact manual transfer switches to the enclosed ATS Bypass, the range of switches covers, as standard, the majority of your switching needs.
To explore the comprehensive range of SOCOMEC electrical switches and UPS, click here!
