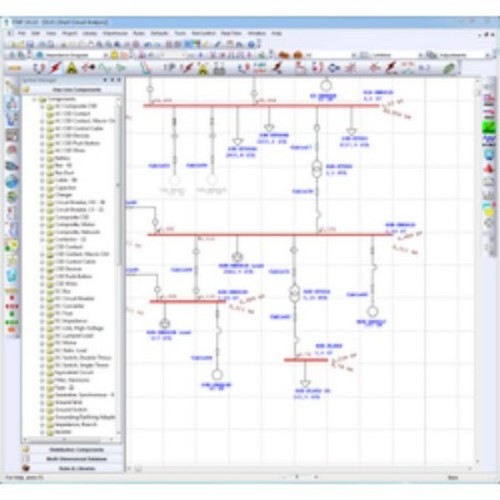

System Harmonics Study

Studies will be carried out which simulates resonance and harmonic distortion in the plant. Harmonic current and voltage sources are to be defined at multiple locations in the power system. Capacitor banks, single tune filters and high pass filters included in the voltage and current distortion evaluation, impedance resonance scans, and in harmonic load flow results. The power distribution system will be examined prior to construction and the harmonic effect addressed during the design with the use of corrective filter designs evaluated prior to installation. All major buses and branches will be evaluated for harmonic content and for resonant impedance characteristics.
