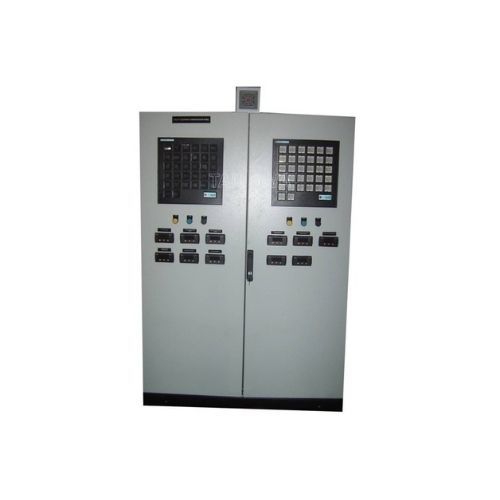

TAN SWA MIMIC PANEL AND DESK

Product Description

TAN SWA MIMIC PANEL AND DESK

Mimic & Annunciator panels are being used in industry for many years to display process status and alarms. They are now regaining popularity due to its non-dependence on any communication network. In mimic panels, the process or flow charts are pictorially represented on the front side of a control desk/ panel.  Generally mimic displays are printed on Polyester or Polycarbonate sheets and provided with acrylic front sheet for protection.  LEDs and other indicators can be fitted on the display for process indication.

We supply conventional mimics as well as mosaic mimics and annunciator panels along with MS powder coated/ stainless steel enclosures and internal wiring of mimic LEDs/ annunciator windows. We have in-house team of designers to design the mimic display as per client’s process layout.

OUR RANGE INCLUDES:

• Mosaic Mimic Panels with 25 x 25 Mimic Tiles
• Mosaic Desk
• Addressable Fire Alarm Mimic Display
• Security Desk Mimic
• Fire Alarm Mimic Panel
• Annunciator Panels with Minilec/Insatalrm/other make Annunciator Windows
• Combination of Annunciator Window and Mimic Display Panels

Being located in Mumbai, our supplied panels including conventional & mosaic mimic panels are installed not only in India but also in various countries like Dubai, Qatar, Saudi Arabia KSA, Oman, Kuwait and also in Austria, Germany, USA, Australia, Sri Lanka, Singapore, Malaysia, Vietnam, Indonesia, India, Nigeria, China, South Korea, Bangladesh, Zambia etc

Mimic & Annunciator panels are being used in the industry for many years to display process status and alarms. In Mimic Panels, the process is pictorially represented on the front side of a Control desk / Panel.

Generally, mimic displays are printed on polyester or polycarbonate sheets and provided with an acrylic front sheet for protection. LEDs and other Indicators can be fitted on the display for Process Indication.

At CSE Solutions, we supply conventional and mosaic mimics and annunciator panels with MS powder coating, stainless steel enclosures furnished with the internal wiring of Mimic LEDs and Annunciator Windows. We have an in-house team of designers to design the Mimic Display as per our client’s process layout.

OUR RANGE:

• Mosaic Desk.
• Addressable Fire Alarm Mimic Display.
• Security Desk Mimic.
• Fire Alarm Mimic Panel.
• Annunciator Panels with Minilec/Insta-alarm/other make Annunciator Windows.
• Combination of Annunciator Window and Mimic Display Panels.

PRODUCT SHOWCASE

• MIMIC DISPLAY FOR COMPRESSOR STATION MONITORING
• MIMIC DISPLAY PANELS FOR FIRE ALARM SYSTEM ZONES
• ANNUNCIATOR PANEL FOR INSTRUMENTATION
• MOZAIC MIMIC
• MIMIC DISPLAY ALONG WITH CONTROL DESK
• MIMIC DISPLAY FOR RICE MILL PLANT
