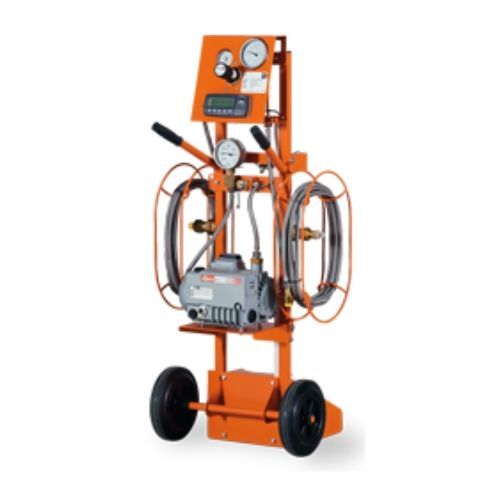

3-001-A-R022 Dilo SF6 Gas Refilling and Evacuating Devices

Product Description

3-001-A-R022 Dilo SF6 Gas Refilling and EvacuatingDevices

EVACUATING AND REFILLING DEVICE

For evacuation of air and refilling of gas compartments fromSF₆ gas bottles

3-001-4-R002
Evacuating and refi lling device
Mobile as cylinder cart

3-001-4-R022
Evacuating and refi lling device with electronic weighing scales 0 - 120 kg
Mobile as cylinder cart

3-001-4-R122
Evacuating and refi lling device with electronic weighing scales 0 - 150 kg
Mobile as cylinder cart

In practice, the device covers two important functions. Theintegrated vacuum pump is the core component of the device. This vacuum pumpevacuates the air down to < 1 mbar so that no air/gas mixture is producedduring the subsequent filling process. The well proven DILO coupling principleensures safe handling without emission.

Using the 3-001-4-R022 version the filling weight can beregistered comfortably by means of a weighing scale. The weight is indicated onthe illuminated display which switches off automatically if the scales are notused for a certain time. Thanks to the tare function high precisionquantification of gas inputs and outputs is possible.



Other features:

• Stable frame
• Accuracy of the weighing scales ±20 g (±50 g only for 3-001-4-R122), 10 g increments
• Integrated serial interface for data exchange or monitoring
• No emissions by self-closing couplings
• Available as accessories for the world‘s most commonly used bottle connections
• Hose reel
• Couplings can be exchanged without any gas loss
• Primary gauge NG63, class 1.6 / Secondary gauge NG100, class 1.0

Technical data3-001-4-R022:

Dimensions: L 720 mm, W 570 mm, H 1,510 mm

Weight: 73 kg

Operating voltage: 220 - 240 V / 50 - 60 Hz alternatingcurrent

Weighing range: 0 - 120 kg with tare function / accuracy: ±20g (only for 3-001-4-R022)

Weighing range: 0 - 150 kg with tare function / accuracy: ±50g (only for 3-001-4-R122)

Digital display with internal battery (IP65)

Integrated serial interface for data exchange or monitoring

Weight indication reversible from kg to lbs

Power supply: internal battery (12 V / 2.5 Ah) with batterycharger / running time in continuous operation up to 20 hours

Protection class: IP65

Operating temperature: -10 to +40 °C
