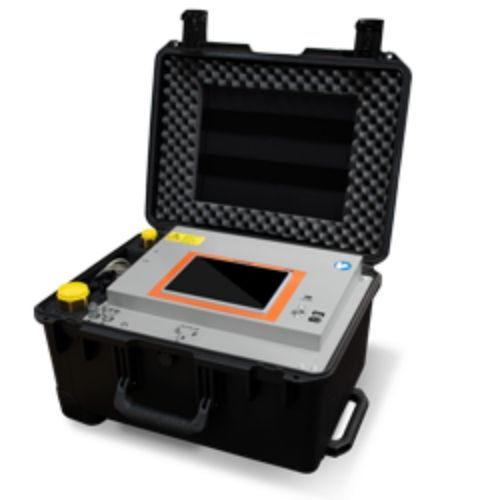

3-038-R-R Dilo SF6 Gas Multi-Analyser with return system

Product Description

3-038-R-R Dilo SF6 Gas Multi-Analyser with return system

MULTI-ANALYSER ^SF6

For verification of several parameters in one operation

3-038R-R...
MULTI-ANALYSER ^SF6 with return system

This multi-functional device allows the determination of upto six quality parameters with only one measurement:

• SF₆ concentration (%)
• Moisture concentration
• SO₂ concentration (ppm_v)
• Option: HF concentration (ppm_v)
• Option: CO concentration (ppm_v)
• Option: H₂S concentration (ppm_v)

If sensors need to be calibrated, they can be easilyexchanged on site by the user. The device is immediately ready for use withoutloss of time based on the “Plug & Play“ principle.

The Multi-Analyser ^SF6 is abattery-operated, compact, user- and maintenance-friendly device whichguarantees high measuring accuracy. The unit allows di­fferent kinds ofmeasurements and treatment of the measured gas in one of the following ways:

» The measured gas can be stored in an internal storagevessel and pumped back into the gas compartment (up to 10 bar p_e)
» For measurements on cylinders, vessels or gas compartments with higherpressure (max. inlet pressure 35 bar p_e)
a pressure reducer is not needed. If the gas should not be pumped back into theSF₆ filled equipment, a cylinder can be connected directly tothe outlet. It is not necessary to disconnect the device from the gascompartment, the vessel or cylinder with the higher pressure.
» An external gas collecting bag can be connected allowing continuousmeasurements (inlet pressure max. 35 bar pe) without pumping the gas back. Theexternal bag can be emptied by using the Multi-Analyser ^SF6, aservice cart or compressor unit.

• No gas emissions during the measuring process
• Modular interchangeability of all sensors
• Operation with or without battery (external power supply)
• Exchangeable battery (replacement and separate shipping is possible)
• Easy and user-friendly menu navigation via high quality 7“ capacitive colour touch screen
• Optional remote control

• Automatic interval measurement is possible
• USB and LAN connection
• Storage of up to 500 measurement results with name
• Adjustable user languages: DE, EN, FR, ES, IT, PT, CZ, PL, CN, JPN, RUS
• Compact design, easy handling and transportation (installed in a trolley case)
