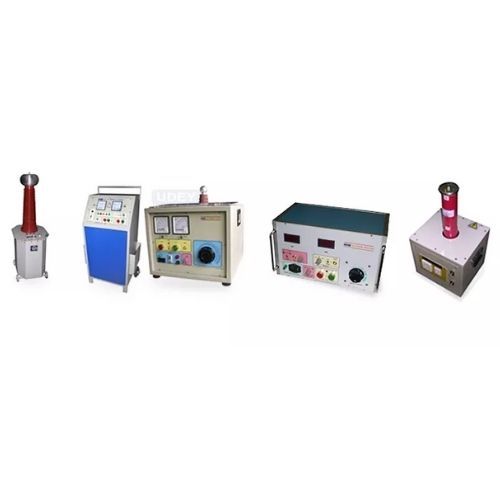

AC, DC, AC and DC Hipot DC Hipot Testers DPC series Udey Test Kits
UDEY H.V. testers are specifically designed for safe and accurate measurement of leakage current to evaluate insulation integrity. These testers are portable, one end ground test systems, ideal for H.V. testing. Accurate leakage measurements are ensured by placing the current meter in the return of the H.V. path. Many features which UDEY provides as standard are either offered by competitors as optional features or not at all. Years of Design, engineering and manufacturing experience have made UDEY H.V. testers the most durable, easily operated and the best designed sets in the industry.
Machine Feature
- Panel mounted controls & indicators with easy to read legend.
- Continuously variable output from zero to full voltage.
- Low end ground test.
- Multi range analogue kV meter and current meter.
- Fast acting overload circuit breaker.
- Zero start interlock.
Machine Technical Specification
| INPUT | 220 Volts ± 10 %, 50/60 HZ AC single phase. |
| RATING | 100 % 10 minutes and 50 % continuous. |
| METERING | Analogue, linear scaled moving coil meters of 96 mm square. |
| TRIP | 20% to 100% of rating adjustable. |
| OUTPUT CONTROL | One knob manual control. |
| COOLING | Air cooled epoxy resin cast up to 50 kV and oil cooled for 75 kV and above. |
| CONSTRUCTION | Sheet steel cabinets powder coated. |
| AC H V TESTERS | DC H V TESTERS | ||
| Model | Output: 50 HZ | Model | Output: Peak value |
| HJ-5-50 | 0-5kV / 50mA | HPD-3-20 | 0-3kV / 20mA |
| HT-10-100 | 0-10kV / 100mA | HPD-5-20 | 0-5kV / 20mA |
| HT-20-100 | 0-20kV / 100mA | HPD-10-20 | 0-10kV / 20mA |
| HT-30-100 | 0-30kV / 100mA | HPD-20-20 | 0-20kV / 20mA |
| HT-50-100 | 0-50kV / 100mA | HPD-30-20 | 0-30kV / 20mA |
| HT-75-100 | 0-75kV / 100mA | HPD-50-20 | 0-50kV / 20mA |
| HT-100-100 | 0-100kV / 100mA | HPD-75-20 | 0-75kV / 20mA |
