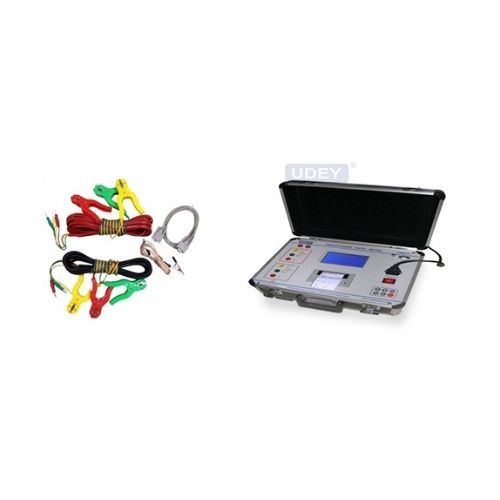

Transformer Turns Ratio Meter Fully Automatic-TRM-11 Meter Udey Test Kits
Model : TRM-11
Description: UDEY TRM-11 is a new generation, fully automatic, transformer turns ratio tester designed for measuring ratio, ratio error of single and three phase transformers. The entire test is done automatically and quickly. Operator enters the test parameters and TRM-11 takes over; powers up the voltage, balances the bridge, takes the readings, and displays the results on the LCD screen. Prints test results through its built-in printer. A key feature of the TRM-11 is automatic measure transformer connection group. LV and HV windings are automatically isolated once the measurement is over. True portability is achieved by the lightweight (only 10 kg), single unit design housing the TRM-11. The TRM-11 is encased in an aluminum alloy cabinet.
Machine Feature
- Fully Automatic; No Manual Balancing
- Automatic measure transformer connection group
- Test Single phase and three phase transformers
- Automatic process transformation of group
- Automatic calculation of ratio error
- Isolates test voltage automatically after test
- Recall and print last 30 test results
- Print results on built-in printer
Machine Technical Specification
| Display | LCD |
| Power supply | 220V±10%, AC 50 Hz. |
| Measurement ratio | 1:10000 |
| Test Voltage | HV:190V AC. MAX. |
| Accuracy | 0.2 class |
| Usage environment | < 40º C. < 85% R.H. |
| Accessories | Test leads 8 meters long |
| Dimensions | 40 x 30 x 20 cm (TRM 11) |
| Weight | 10 kg. (TRM 11) |
Standard Accessories
- Flexible 3 core testing leads with alligator clamp -1 pair.
- Mains connecting cable.
- Earth Cable.
- PC Soft ware for RS 232.
- RS 232 cable
- Paper roll for printer, 1 no.
- Spare fuses 2 nos.
- Operating manual 1 no.
