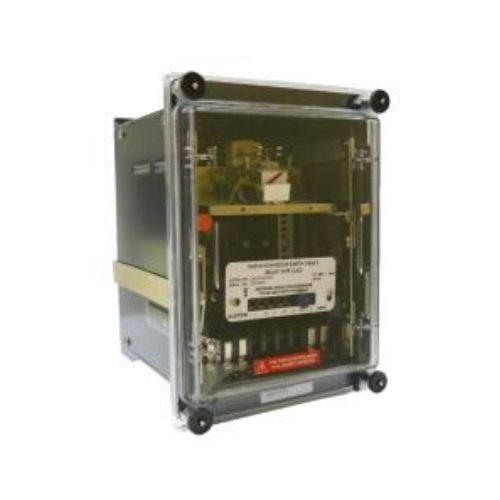

Alstom RESTRICTED EARTH FAULT CAG14AF14A
Product Details:
X
Product Description
ALSTOM RESTRICTED EARTH FAULT CAG14AF14A
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Restricted earth fault
| Relay Model No | CAG14AF14A |
| Relay type | CAG 14 |
| Case size | 1D V 10T |
| Application | E/F |
| Current setting | 0.2 to 0.8 amps |
| C.T.Secondary | 1 amps |
| Contacts (S/R OR H/R) | 2 N/O S/R |
| E/F or U/V Setting | 20 - 80% E/F |
| Flag | Yes |
| Mounting | Flush |
| Frequency | 50 Hz |
| Stablising resistor | 200 Ohms |
| Name Plate | RFM9053 805 |
| Outline Diagram | MFJ 012 |
| Wiring Diagram | ADZ 077.4-1 |
