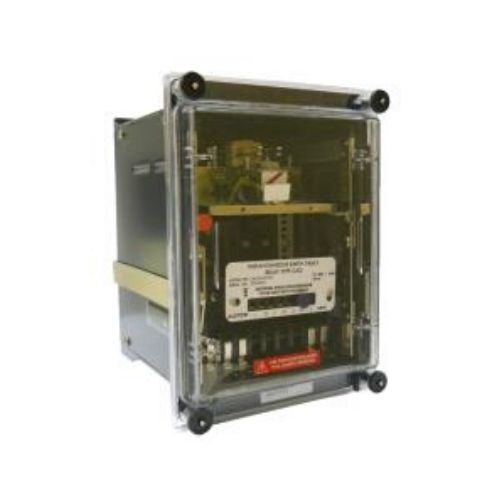

Alstom Restricted Earth Fault Cag14af16a
Product Details:
X
Product Description
Alstom Restricted Earth Fault Cag14af16a
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Restricted earth fault
| CAG14AF16A |
| INST.HIGH STAB CIRCULATING CURRENT RELAY |
| Technical Specifications |
| Relay Model NoCAG14AF16A |
| Relay type CAG 14 |
| Case size 1D V 10T |
| Application E/F |
| Current setting 1 to 4 amps |
| C.T.Secondary 5 amps |
| Contacts (S/R OR H/R)2 N/O S/R |
| E/F or U/V Setting 20 - 80% E/F |
| Flag Yes |
| Mounting Flush |
| Frequency 50 Hz |
| Stablising resistor 50 Ohms |
| Name Plate RFM9053 805 |
| Outline Diagram MFJ 012 |
| Wiring Diagram ADZ 077.4-1 |
