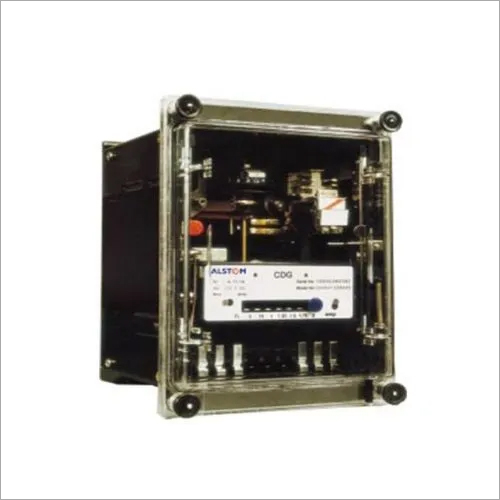

Alstom SELF-POWERED INVERSE TIME O/C OR E/F Relay CDG11AF014SACH
Product Details:
X
Product Description
ALSTOM SELF-POWERED INVERSE TIME O/C OR E/F RELAY CDG11AF014SACH
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Over current & Earth fault Protection(IDMT Relay)
- GBCDG11AF014SACH
SELF-POWERED INVERSE TIME O/C OR E/F REL
| Technical specification |
|
| Relay model no | CDG11AF014SA(M) |
| Relay type | CDG11 |
| Case size | 1D V 10T |
| Application | E/F |
| C.T.Secondary | 5 AMP C.T. |
| Contacts (S/R OR H/R) | 2 N/O S/R |
| Flag | Yes |
| Mounting | Flush |
| BURDEN | 3VA /1.3 SECS. |
| E/F OR U/V SETTING | 0.5 - 2 Amps. |
| O/C OR O/V SETTING | NOT APPLICABLE |
| Name plate | RFG9125-795 |
| Outline drawing | MFJ012 |
| Wiring diagram | MADZ802.63-1 |
