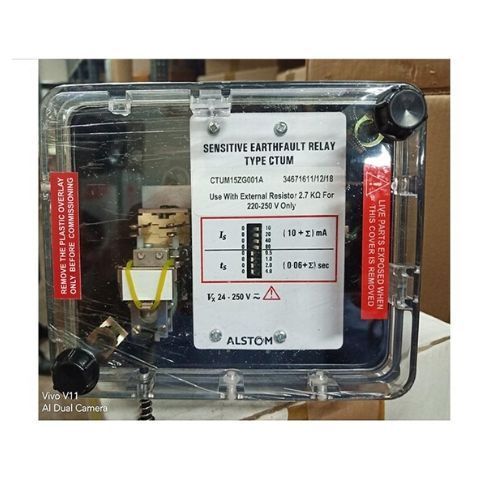

ALSTOM Single pole definite time static sensitiveE/F CTUM15G001A
Product Details:
X
Product Description
ALSTOM SINGLE POLE DEFINITE TIME STATIC SENSITIVEE/F CTUM15G001A
Technical Specification
- Type: Electro Mechanical Relay
- Protection Type: Single pole definite time static sensitive E/F
CTUM15ZG001A
STATIC DEFINITE TIME SENSITIVE EARTH FAU
| Technical Specifications | |
| Relay model no | CTUM15ZG001A |
| Relay type | CTUM 15 |
| Case size | 1/2N H 12T |
| Application | E/F |
| Current setting range | 10 to 160 mAmps |
| Operating time sett.range | 0.5 to 7.5 secs |
| Aux.voltage | 24 - 250V c/dc |
| Contacts | 2 N/O S/R |
| Flag | Yes |
| Mounting | Flush |
| Ext.Resistor | 2.7K Ohms |
| Name plate | MZF9021-01 |
| Outline Diagram | MFM 017 |
| Wiring Diagram | MZDZ607.01-1 |
